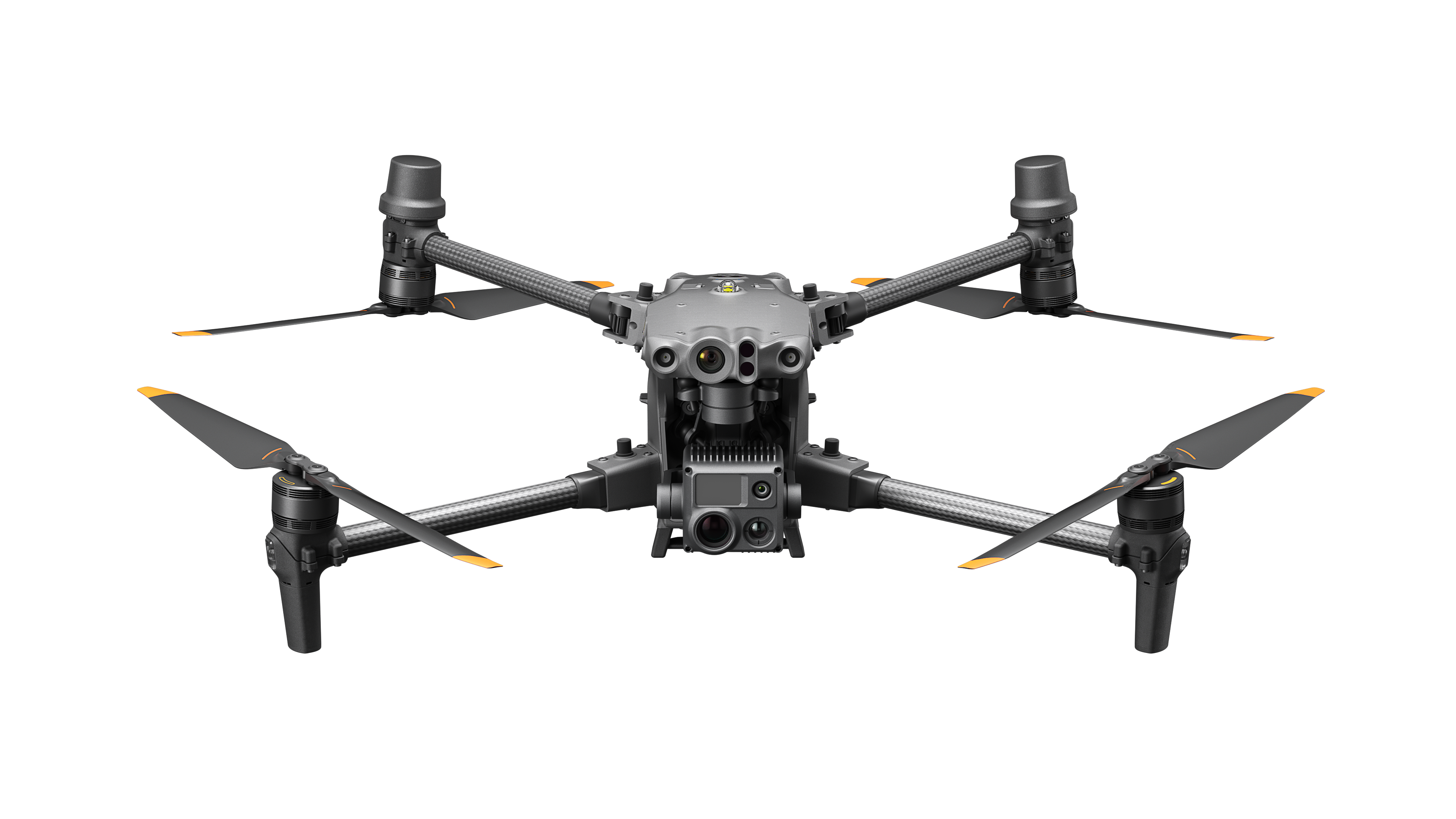

Matrice 30 Series

Matrice 30 SERIES

Power in Portability

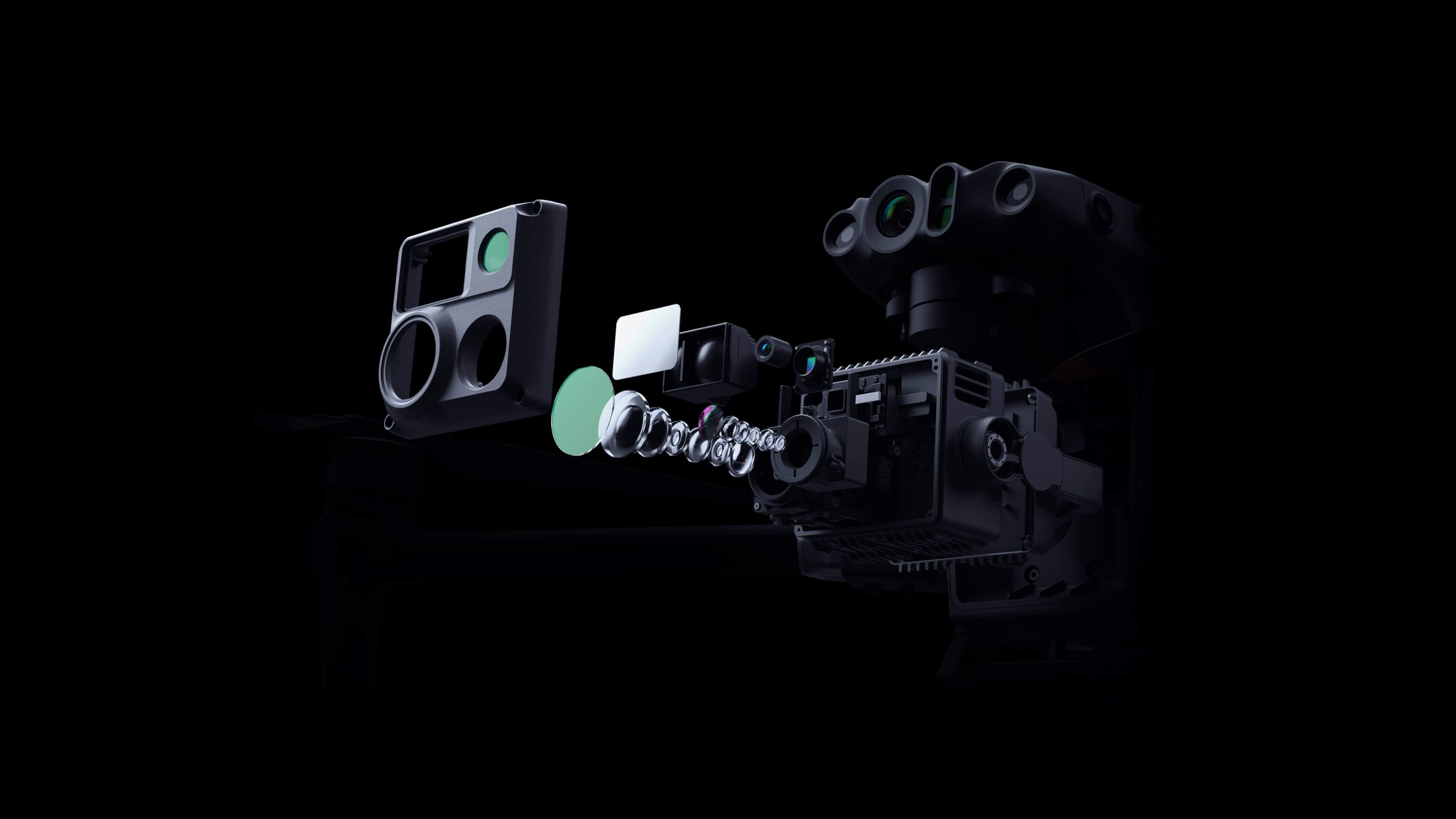

Unique aerial intelligence to capture everything

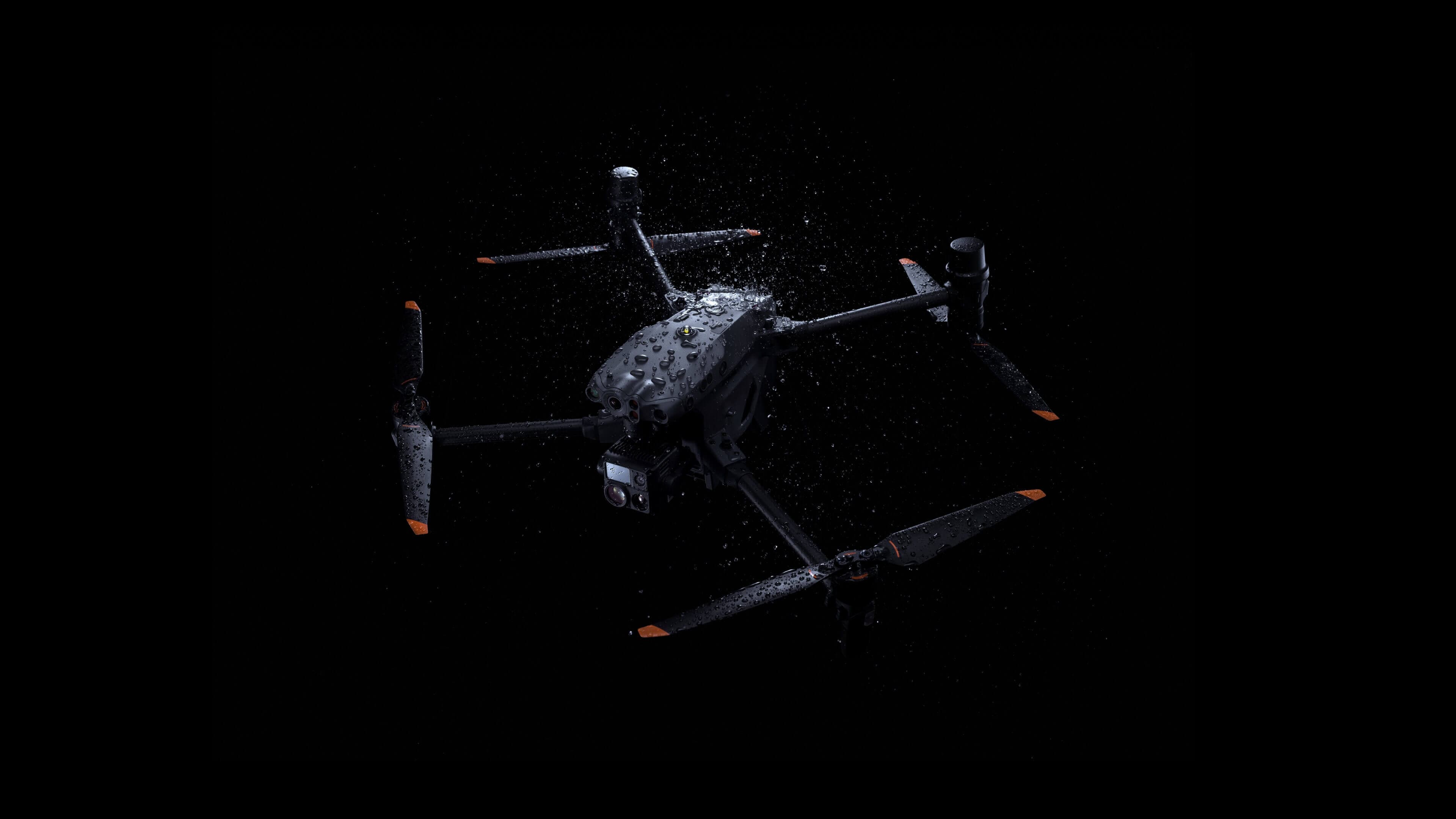

Relible in the harshest of environments

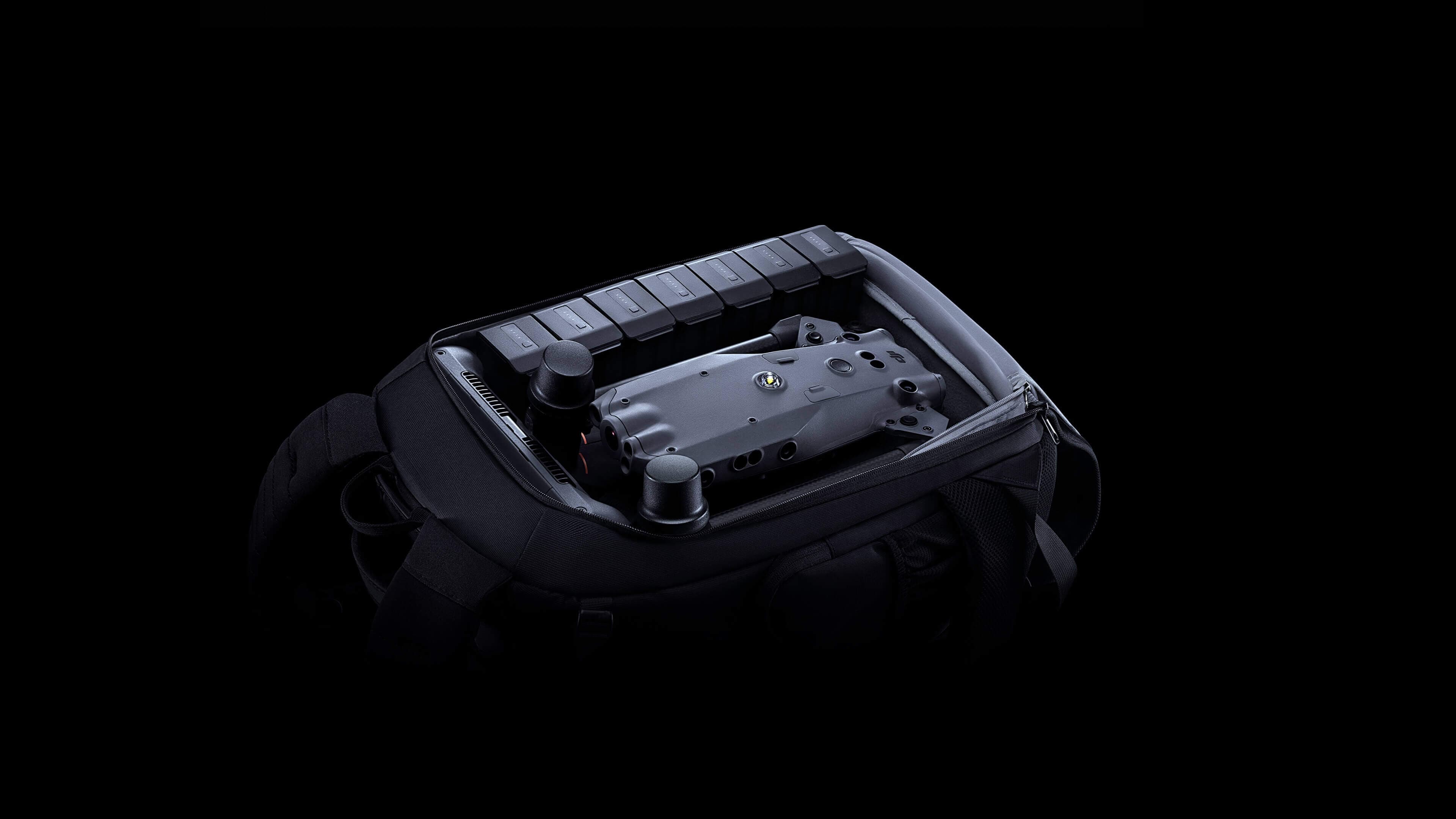

Portable to go wherever you go

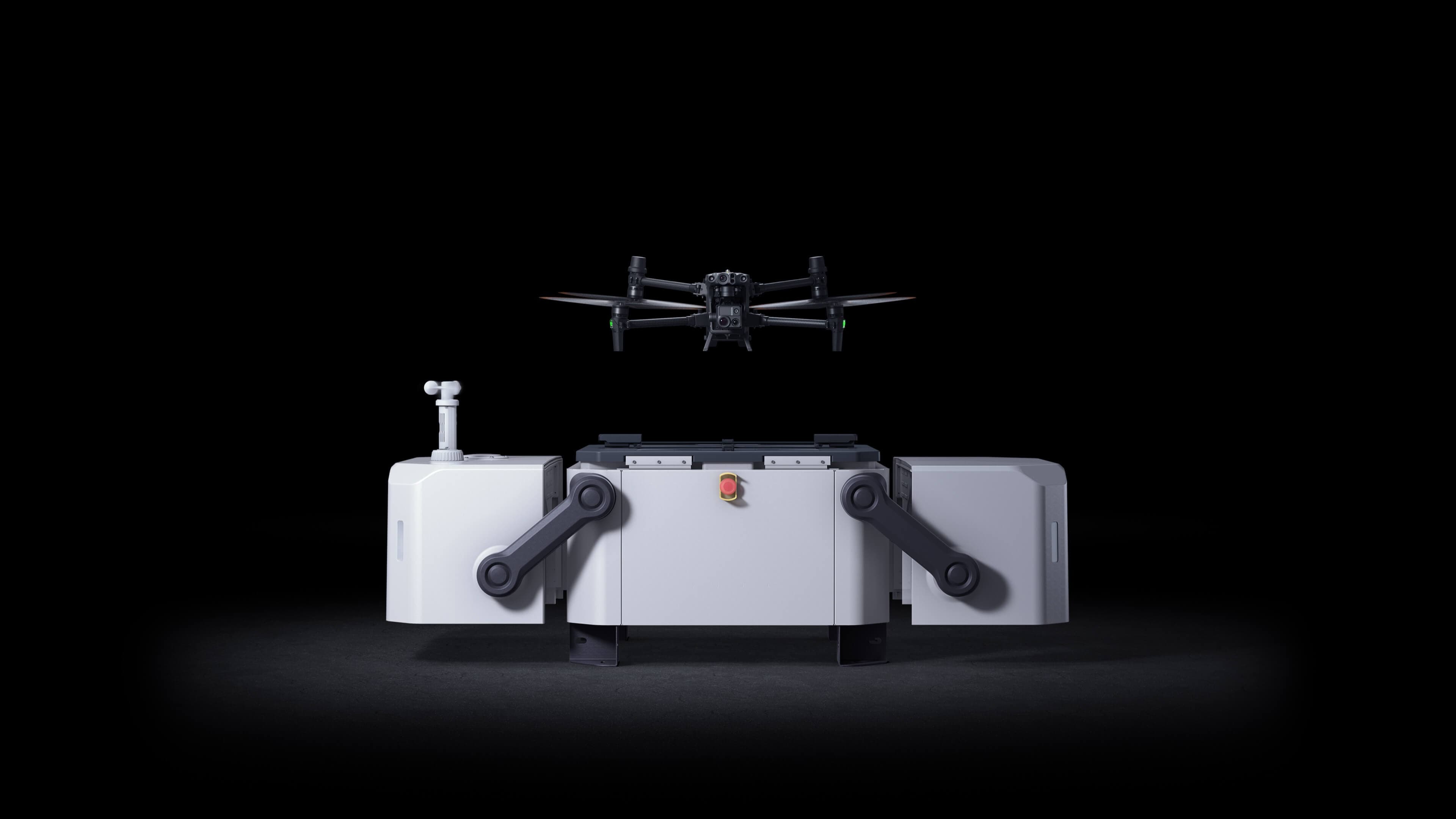

Ready, when you are, to overcome the unknown

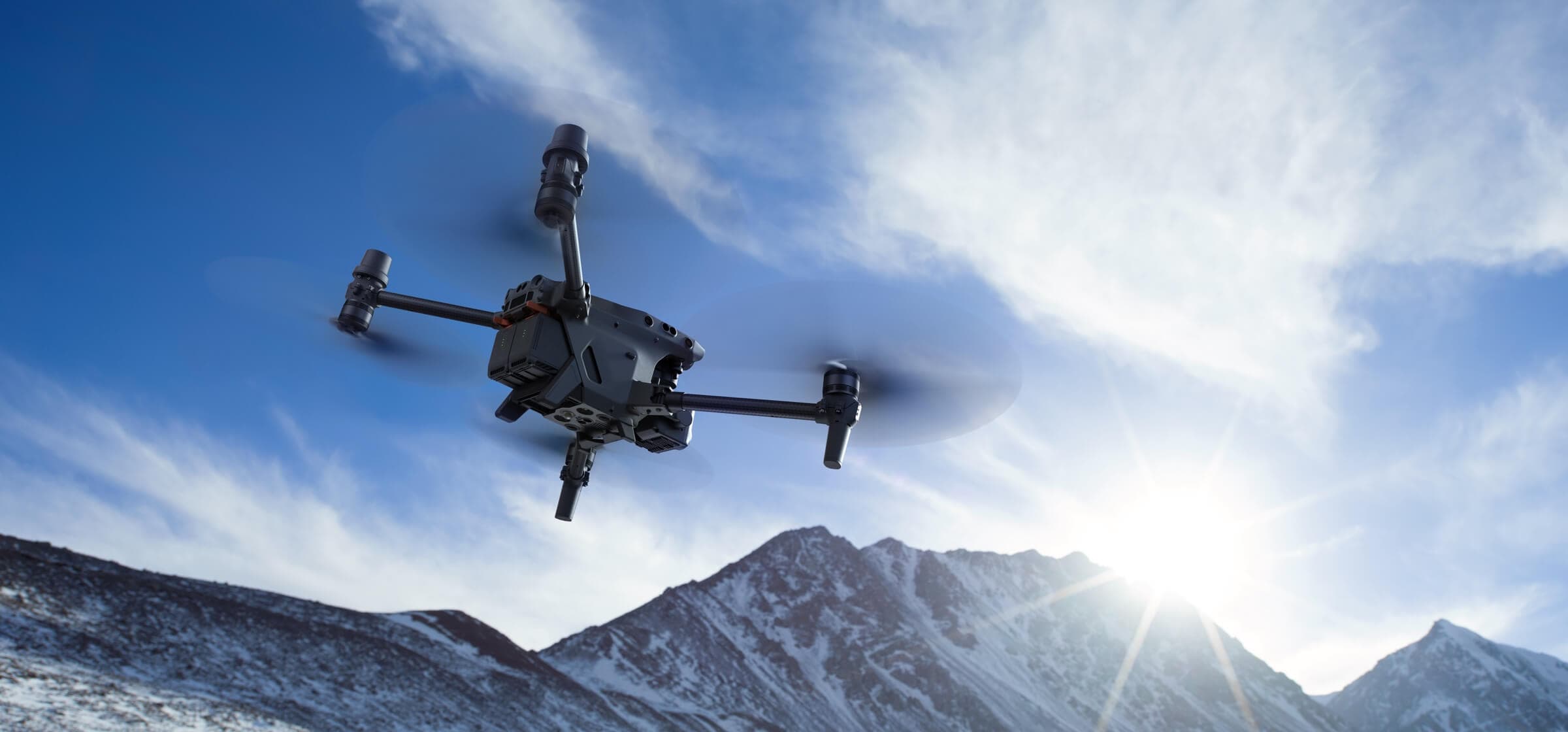

Powerful Flight Performance

A balance of power and portability delivers higher operational efficiency

41-min

Max Flight Time

12 m/s

Wind Resistance

7000 m

Service Ceiling

23 m/s

Max Speed

Environmental Adaptability

With IP55 protection, the M30 can easily handle adverse weather and temperatures ranging from -20° C～50° C.

Safe and Reliable

Dual-vision and ToF sensors appear on all six sides of the aircraft, keeping it and your mission safe. The built-in ADS-B receiver provides timely warnings of any incoming crewed aircraft nearby.

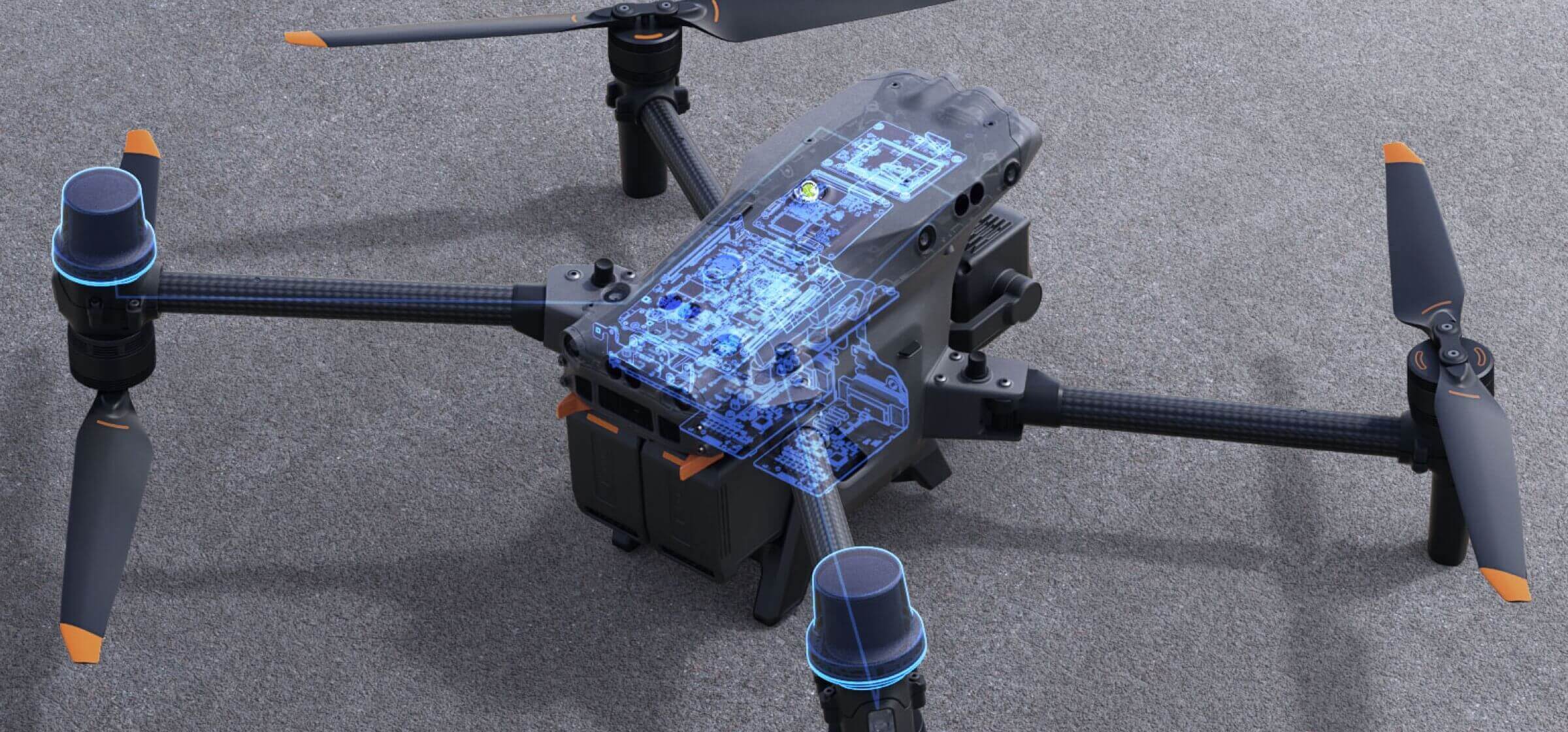

Redundancies and Backup Systems

Built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.

Enhanced Transmission

Four built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments.

Lightweight and Portable

Compact and foldable, the M30 Series is easy to pack up, carry, and deploy.

Capture Everything

The M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.

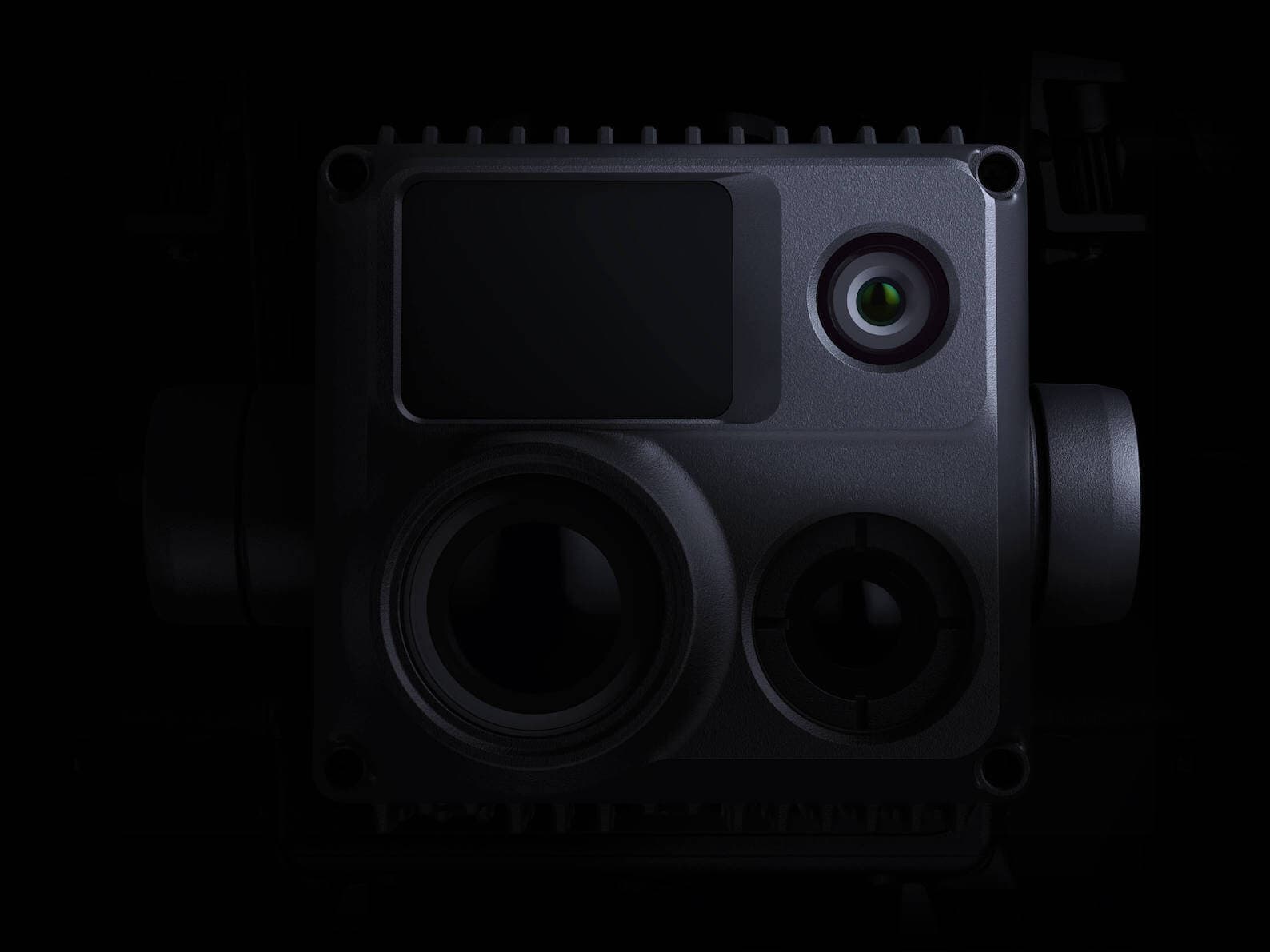

Wide Camera

Equivalent Focal Length:

24 mm

DFOV:

84°

Image Sensor:

12 MP 1/2'' CMOS Sensor

Video Resolution:

4K/30fps

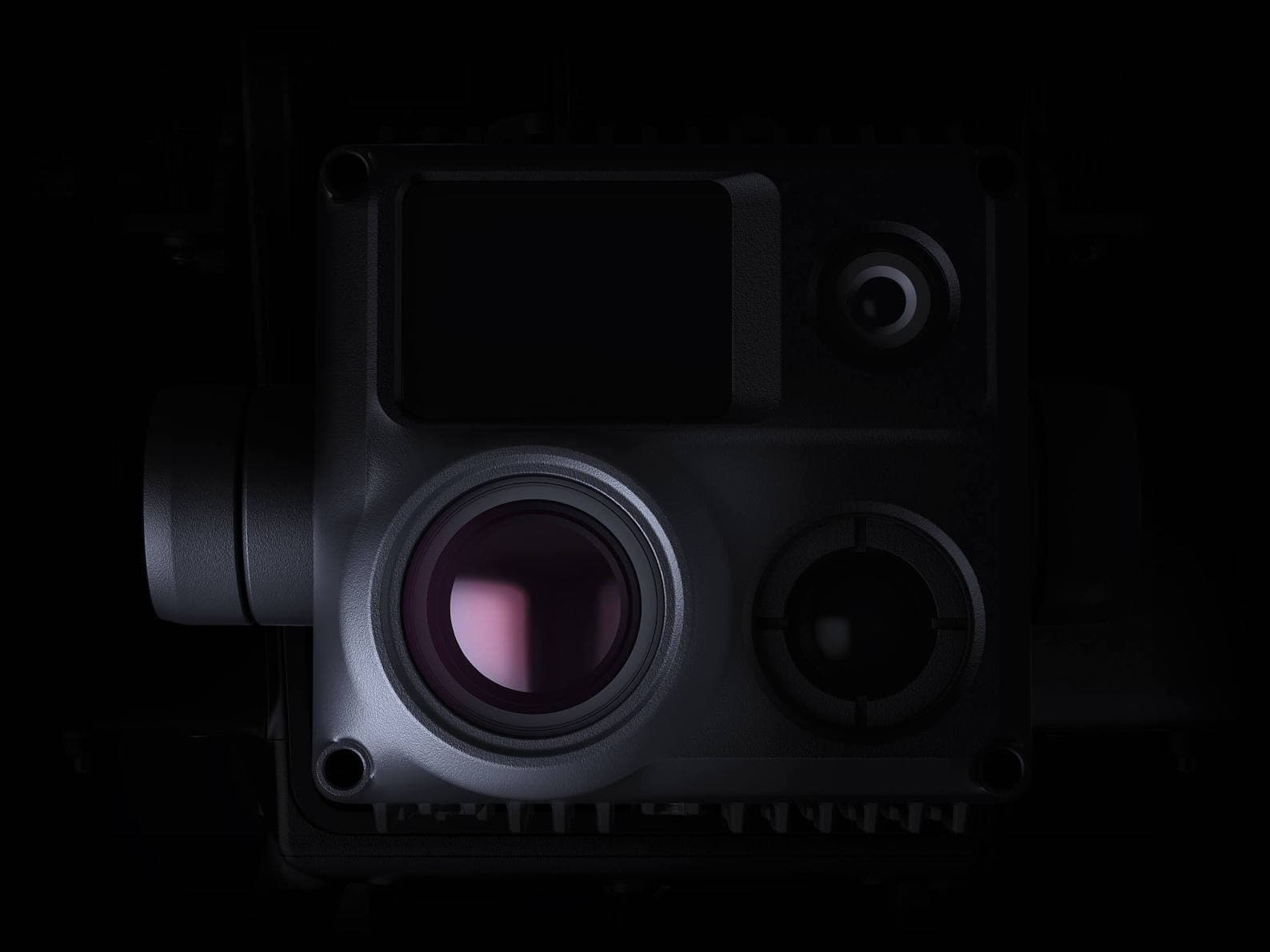

Zoom Camera

Image Sensor:

48 MP 1/2'' CMOS

Optical Zoom:

5x–16x

Hybrid Zoom (Max):

200x

Photo Resolution:

Video Resolution:

4K/30fps

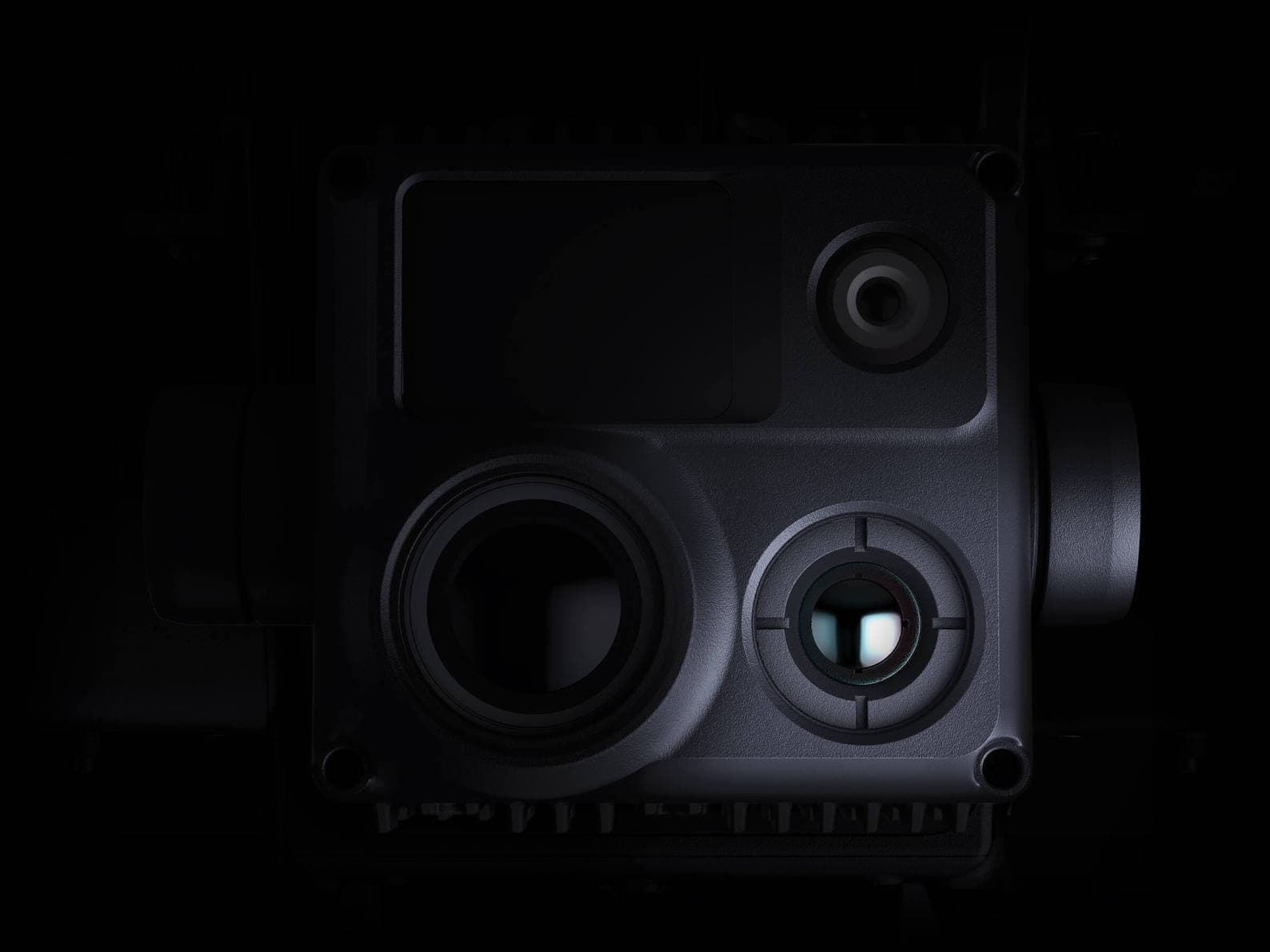

Thermal Imaging Camera

Equivalent Focal Length:

40 mm

Resolution:

640×512

Frame Rate:

30fps

Measurement Accuracy:

±2°C or ±2%

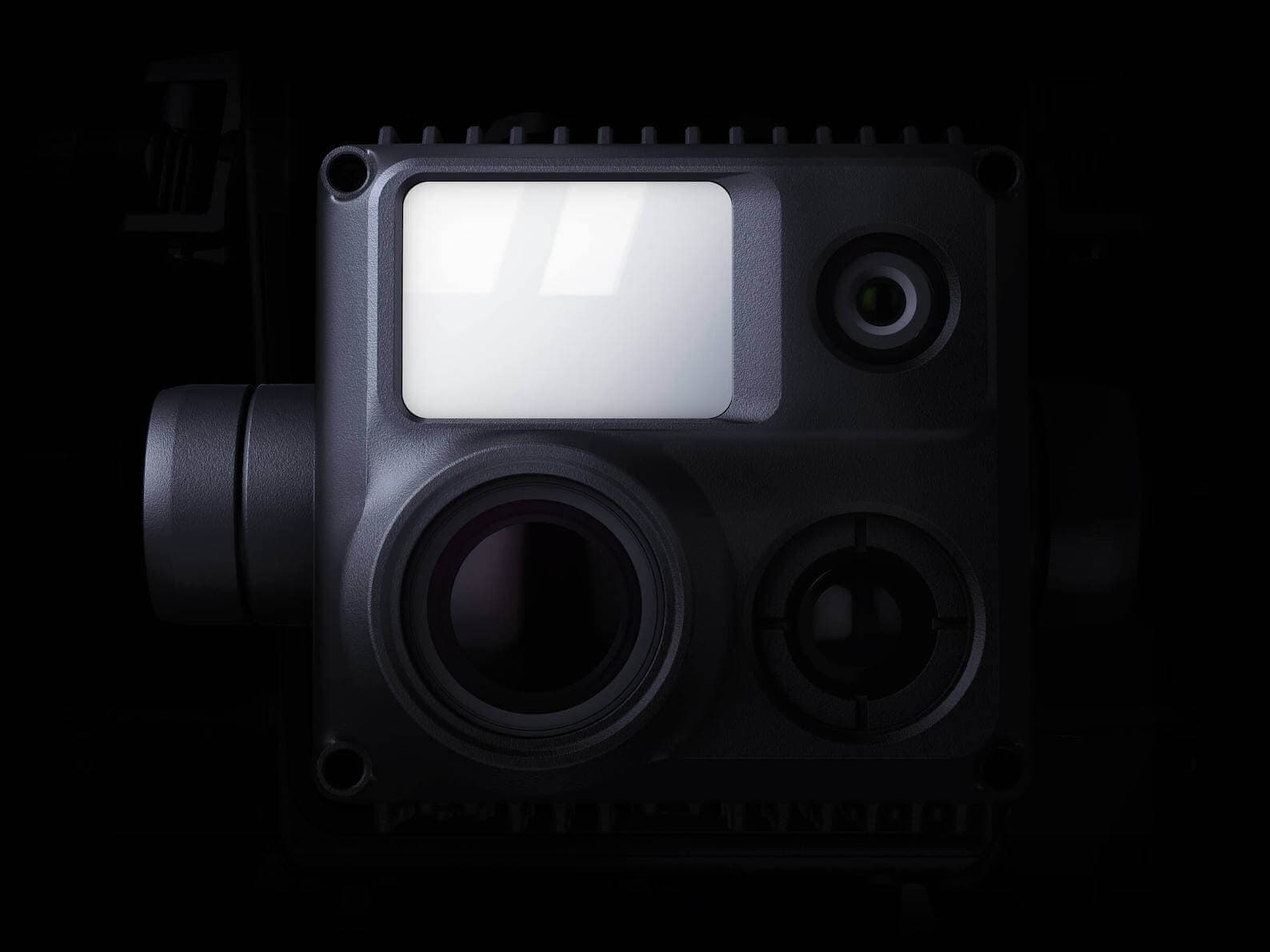

Laser Rangefinder

Range:

3 m - 1200 m

Accuracy:

±(0.2m+D×0.15%)

Superior Image Quality

With the FPV camera optimized for low-light conditions, the ground and skyline are clearly visible, even at night, so you can fly with safety and confidence.

Capture bright, clear images in low-light conditions with Smart Low-Light Photo.

See it all from above.

Find hotspots and heat signatures thanks to high-resolution thermal capabilities.

PinPoint an object in view, and advanced sensor fusion algorithms immediately deliver its coordinates.

With the FPV camera optimized for low-light conditions, the ground and skyline are clearly visible, even at night, so you can fly with safety and confidence.

Capture bright, clear images in low-light conditions with Smart Low-Light Photo.

See it all from above.

Find hotspots and heat signatures thanks to high-resolution thermal capabilities.

PinPoint an object in view, and advanced sensor fusion algorithms immediately deliver its coordinates.
