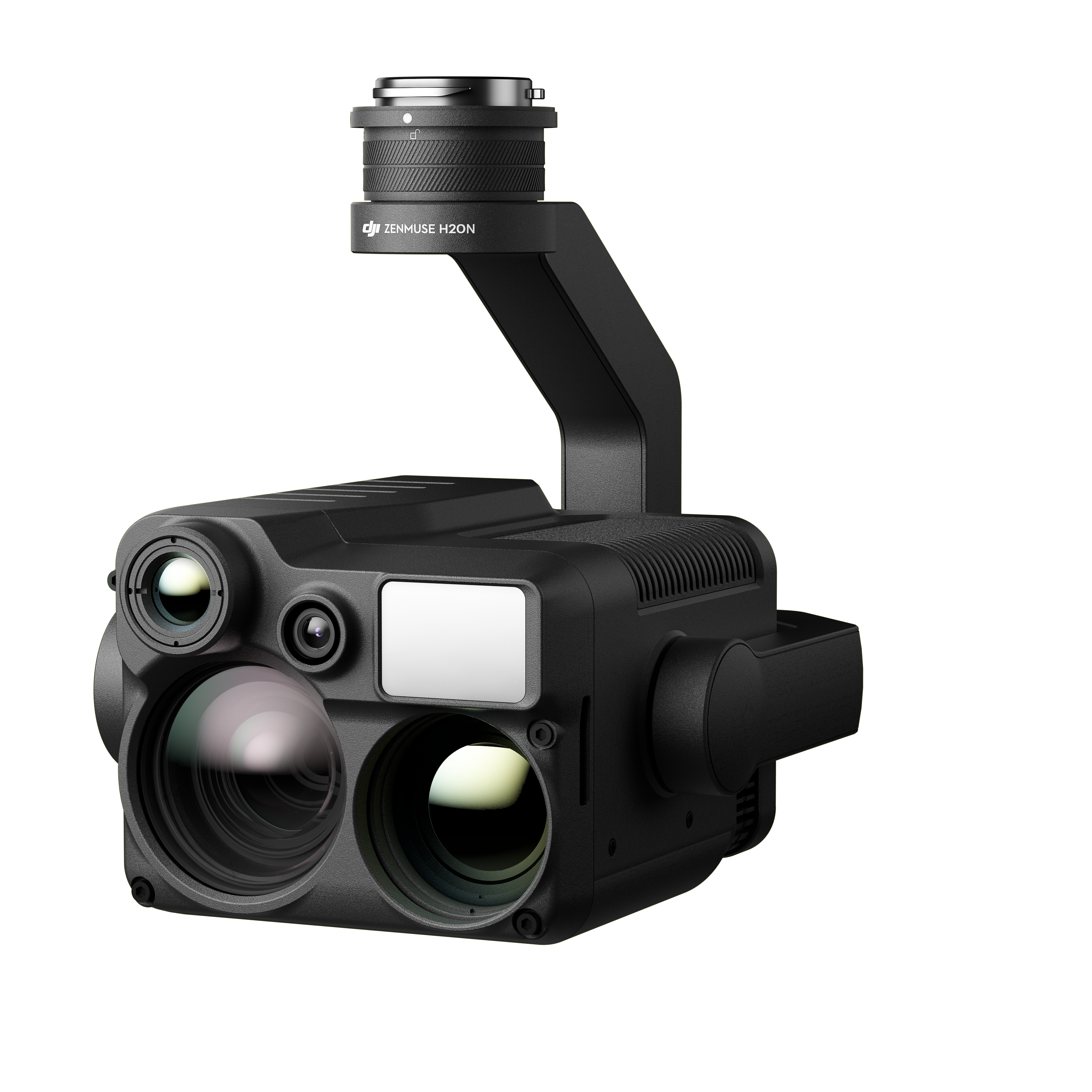

Zenmuse H20N
Zenmuse H20N
Vision Beyond Darkness
"N" for Night Vision
The Zenmuse H20N integrates starlight sensors1 into its zoom and wide-angle cameras. Pair this with dual zoom thermal cameras and a laser rangefinder, and you have a versatile hybrid payload that rises to the occasion.
Starlight Night Vision
640×512 Dual Thermal Cameras 2×, 8× Optical Zoom
20× Hybrid Optical Zoom
Laser Rangefinder 1200 m Max Range
Synchronized Split-screen Zoom
Intelligent Night Scene Enhancement
IP44 Rating
-20°C to 50°C Operating Temperature
Sensors Upgraded Across Multiple Dimensions

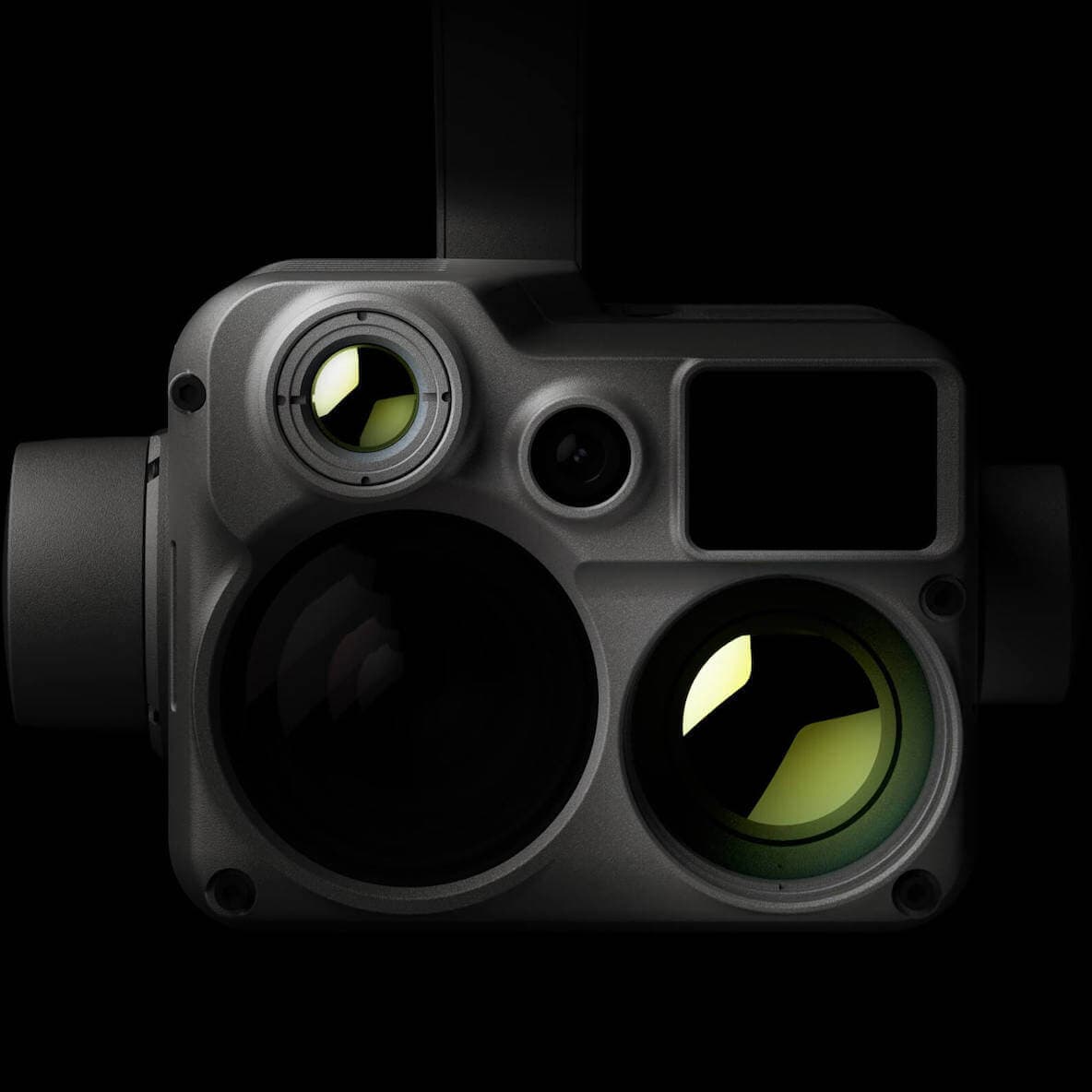

Infrared Zoom
Dual Thermal Cameras
2x Zoom
Equivalent Focal Length: 53 mm
8x Zoom
Equivalent Focal Length: 196 mm

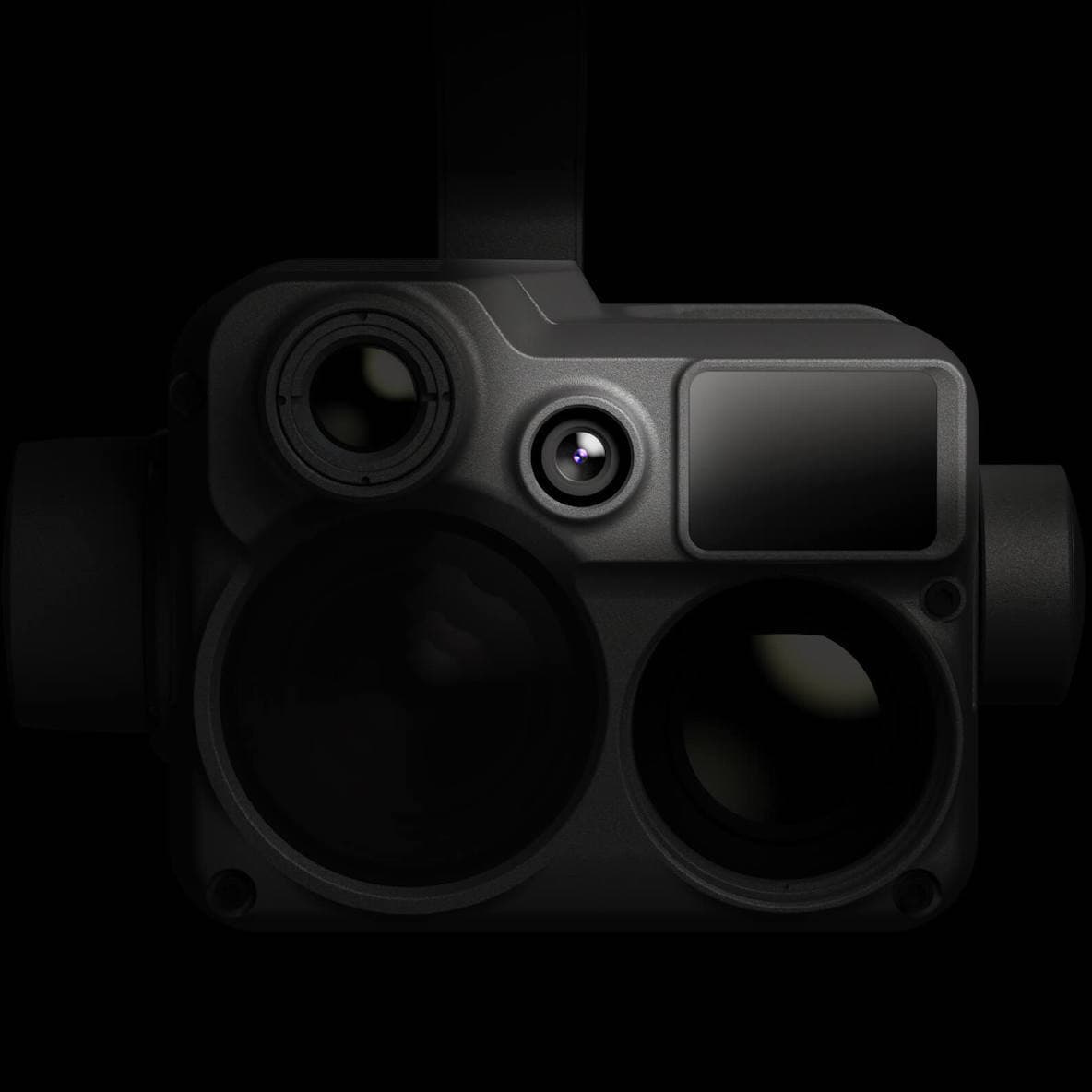

See the Big Picture
Night Vision Wide Camera
2MP
Starlight Sensor
Stronger Low-Light Performance

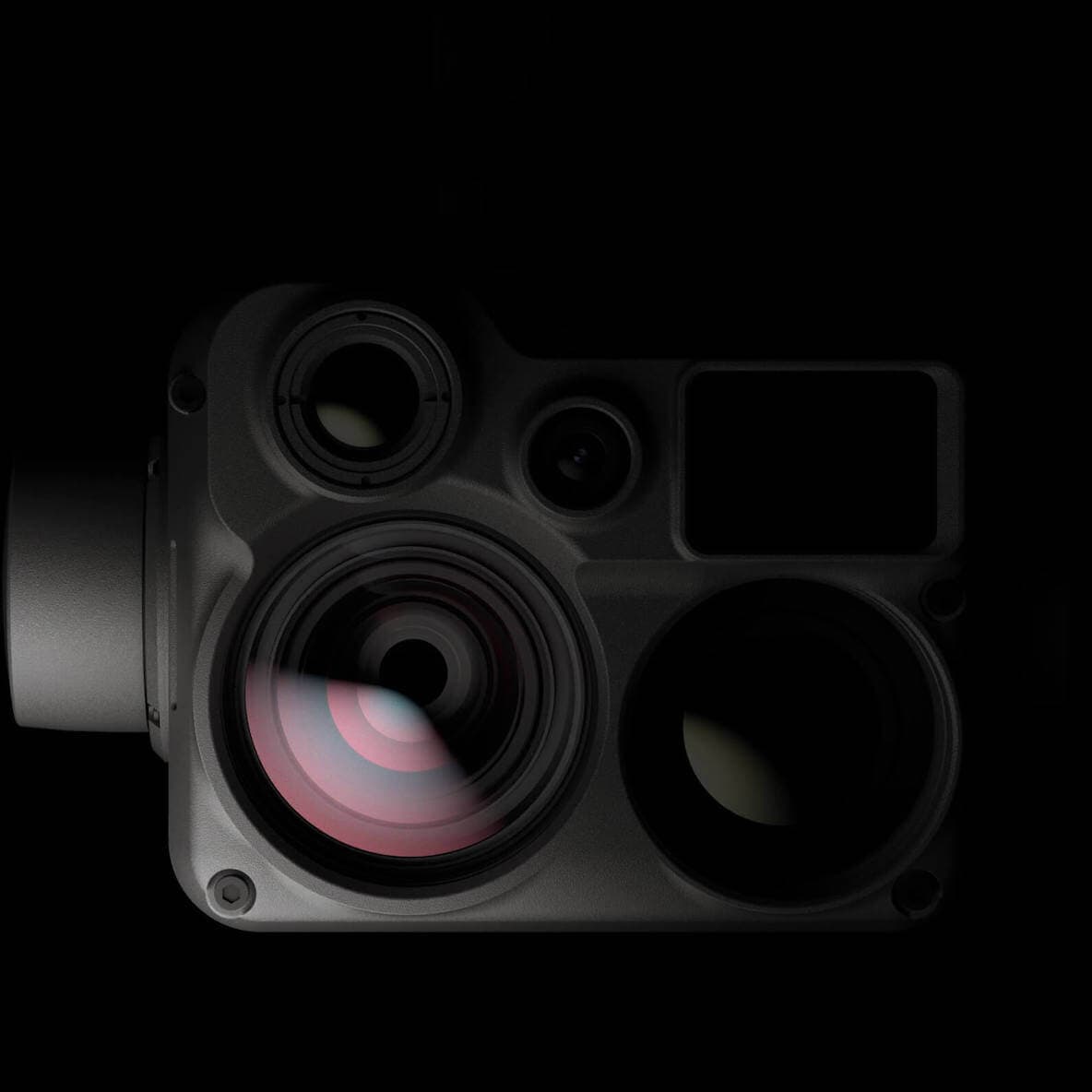

Pierce Through the Veil
Night Vision Zoom Camera
4MP
Starlight Sensor
20× Optical Zoom, 128× Max Zoom
Low-Light Details

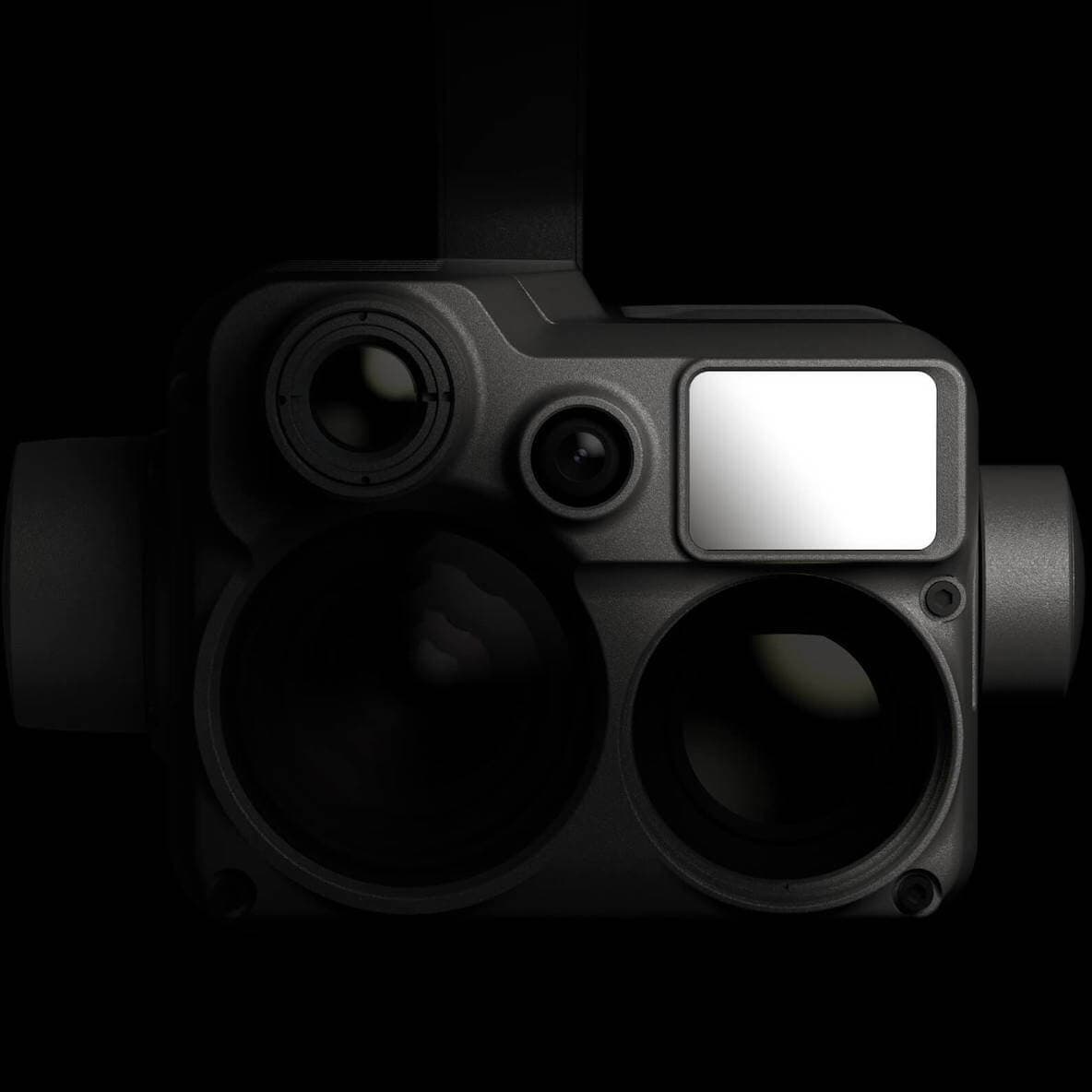

Precise Distance Data
Laser Rangefinder
3 m to 1200 m
Range
2± (0.2 m + D×0.15%)
Accuracy

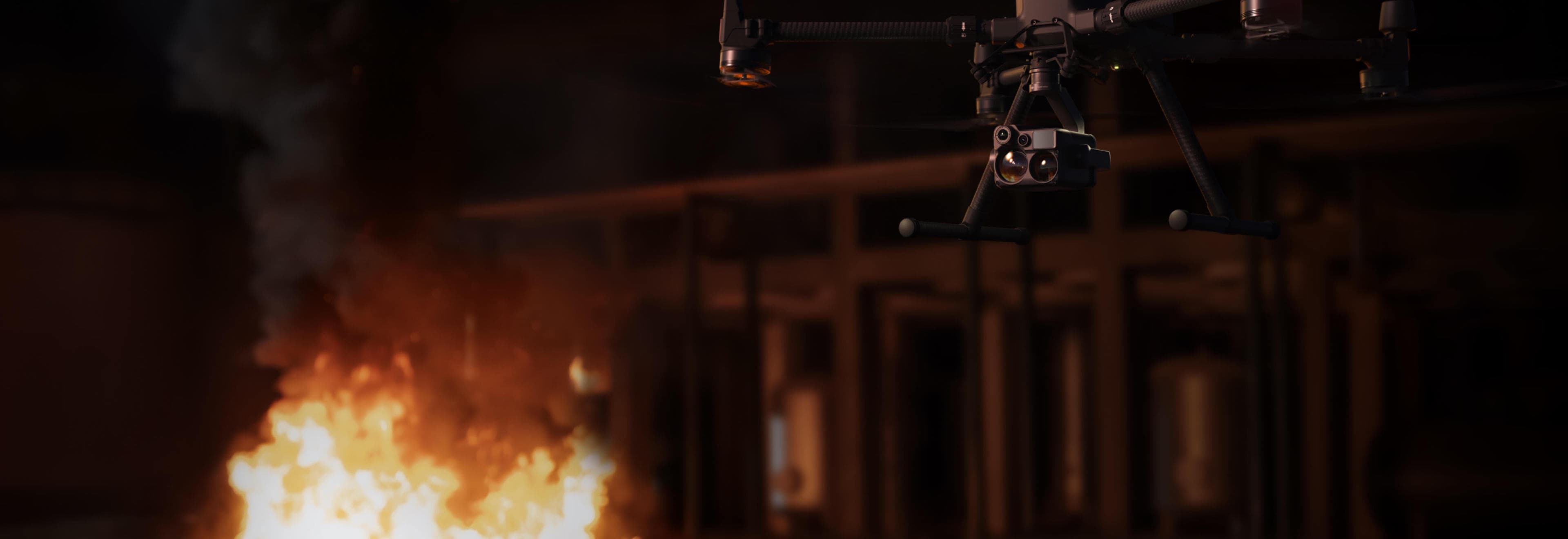

Thermal and Starlight Vision to Elevate Your Operations

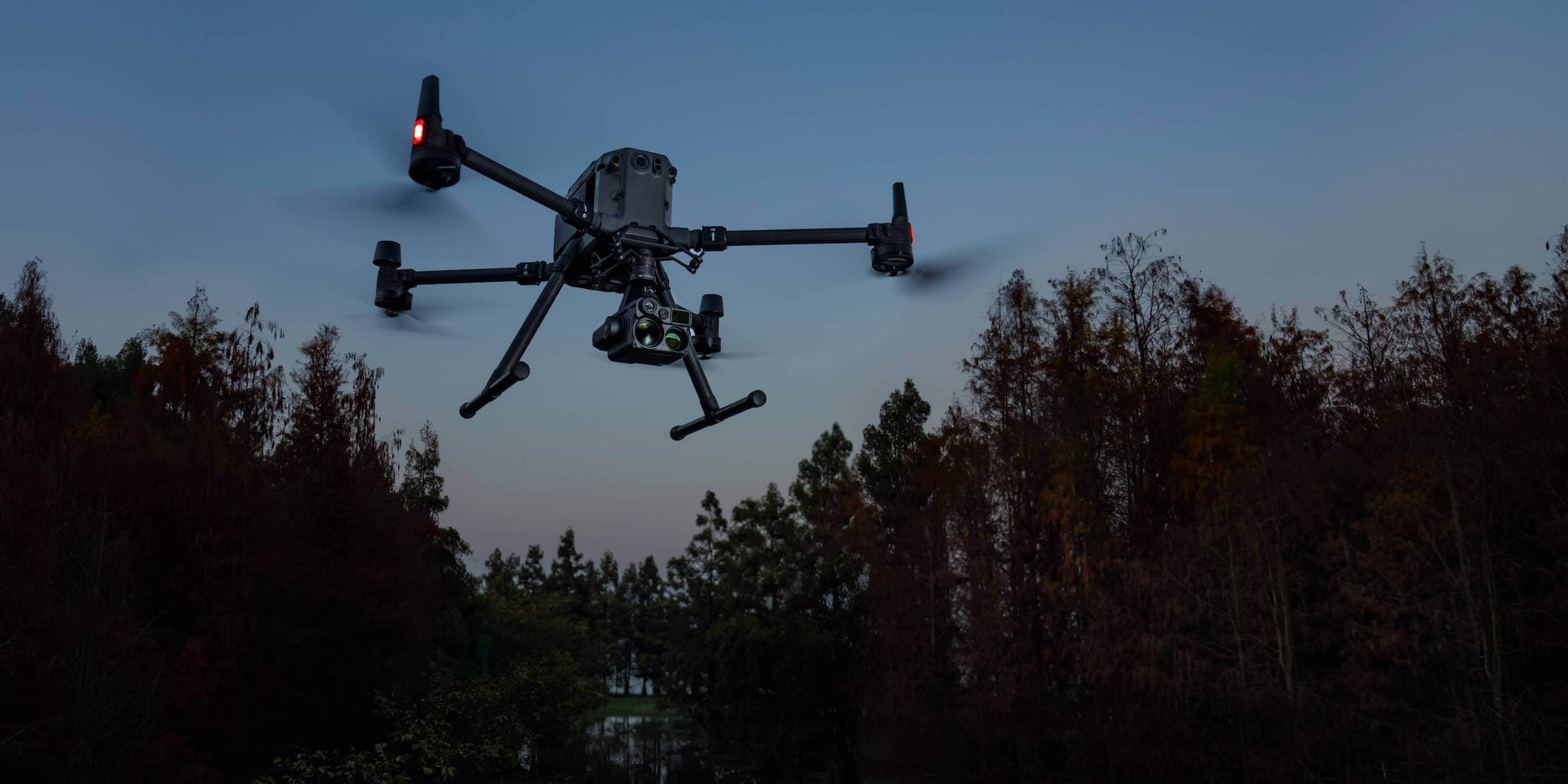

See Through the Night
The zoom and wide-angle cameras are equipped with starlight sensors that are tailor-made for low-light environments.
More Intelligent Features
Thermal Features
Color Palettes
Adjust the colors applied to the thermal data based on the mission requirements.
Isotherms
Visualize a specific band of temperatures to highlight your targets.
Temp. Alarm
Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.
Gain Modes
Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.
R-JPEG Images
Images captured by the Zenmuse H20N are in R-JPEG format with embedded temperature information. By importing these images into the DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
Zenmuse H20N
Vision Beyond Darkness
