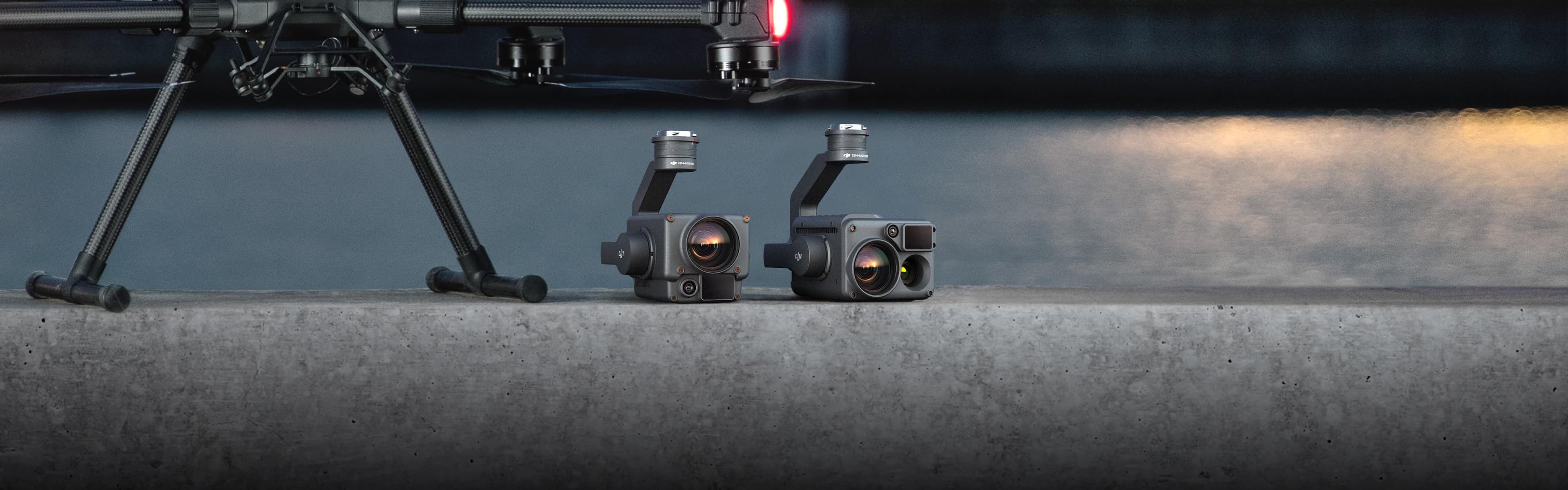

Zenmuse H20 Series

Unleash the Power of One

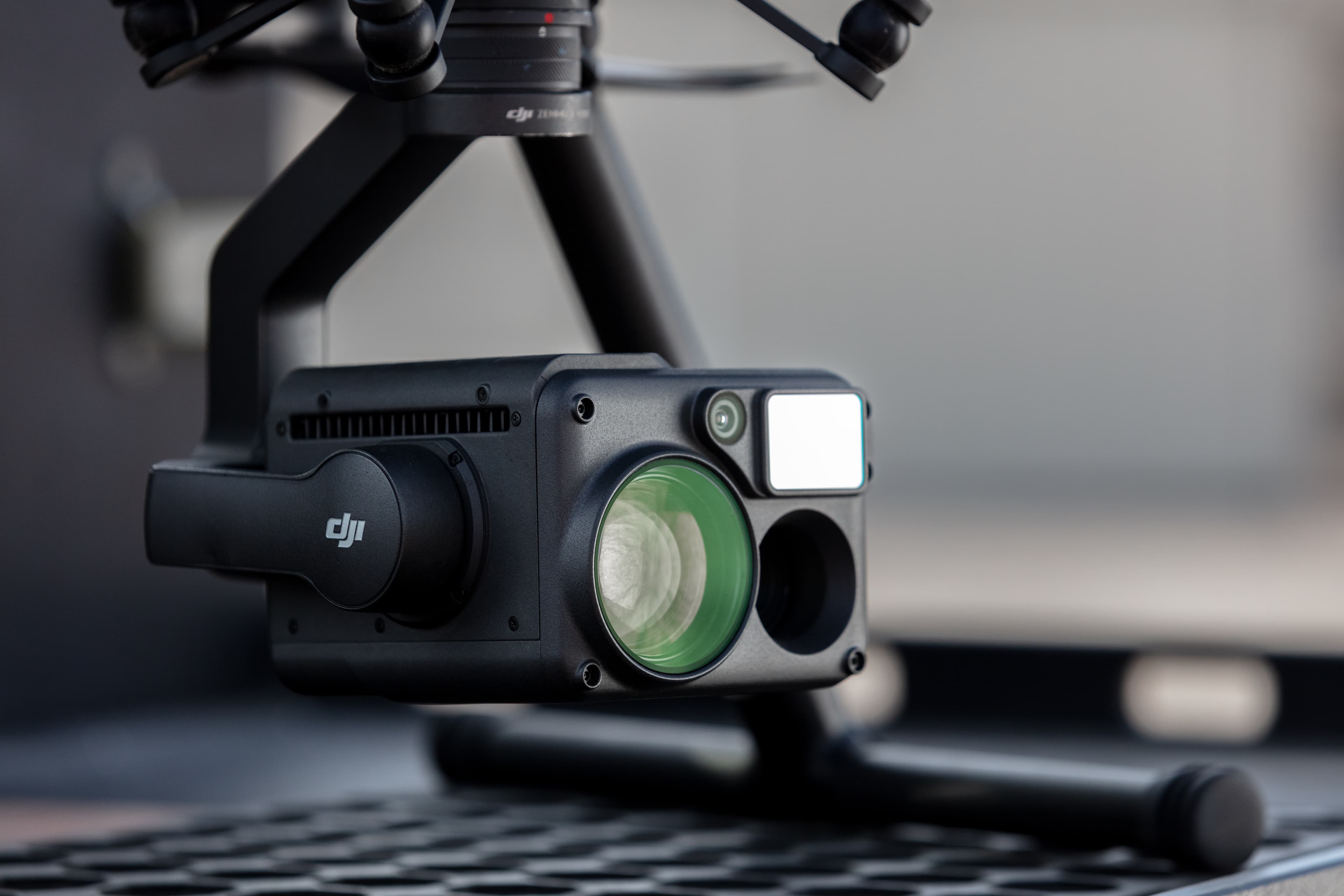

“H” For Hybrid

Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications. Welcome to DJI’s first hybrid sensor solution – the Zenmuse H20 Series.

12 MP Wide Camera 82.9° DFOV

20 MP Zoom Camera 23× Hybrid Optical Zoom

Radiometric Thermal Camera 640×512 px

Laser RangeFinder 1200 m Max Range

IP44 Rating

-20°C to 50°C Operating Temperature

Active Image Stabilization and EIS

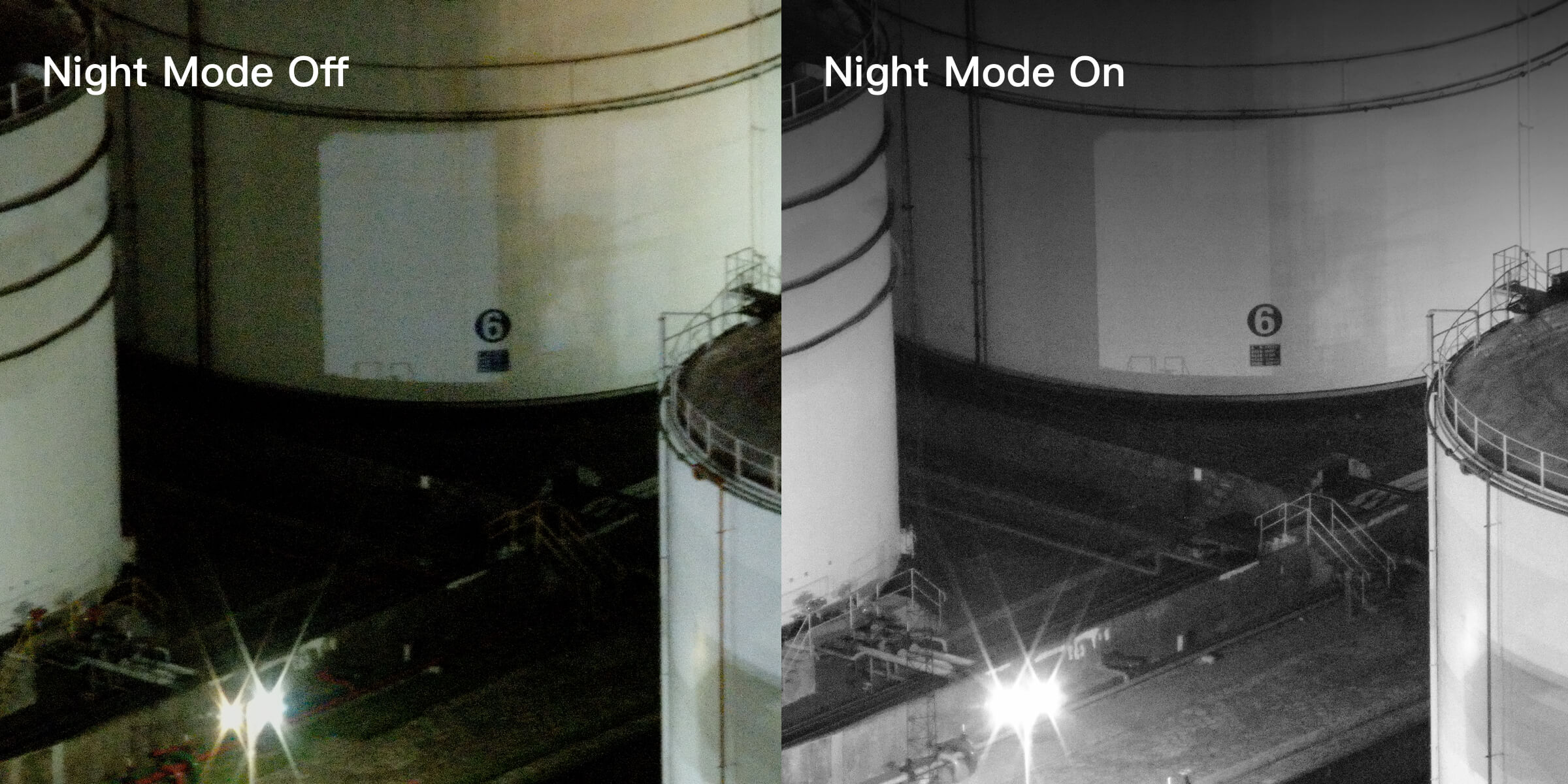

Night Scene Mode

All The Sensors You Need – In One

Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

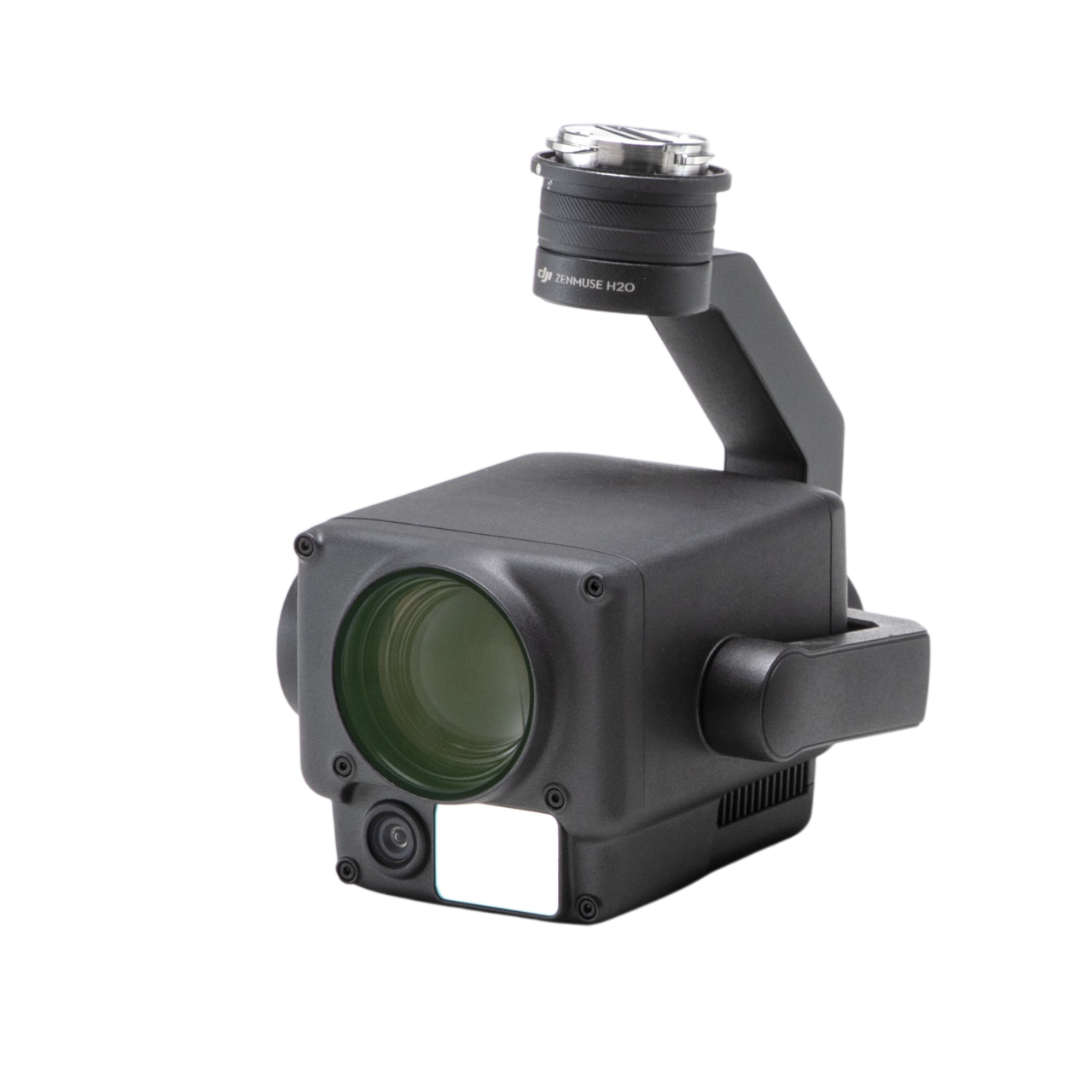

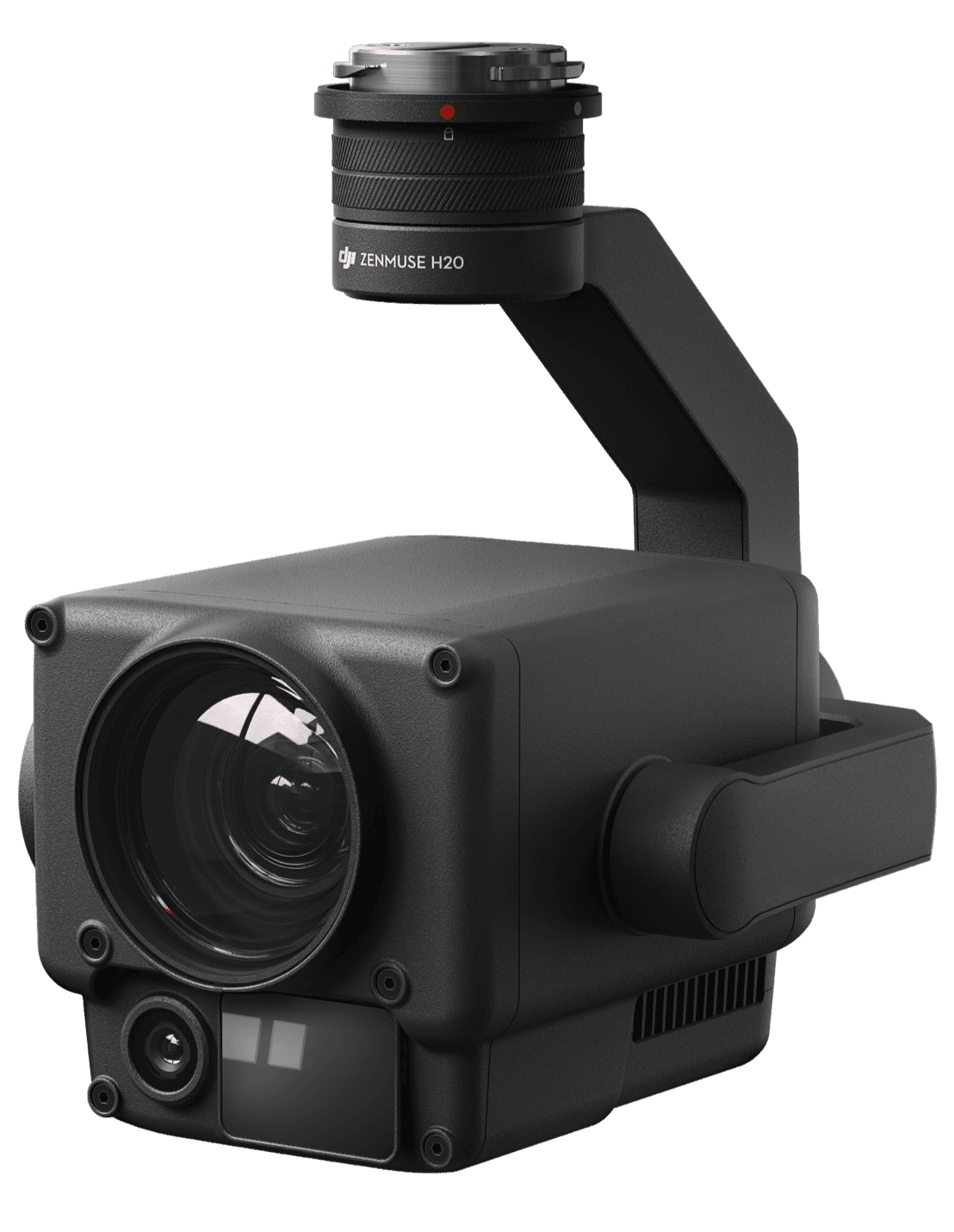

H20 – Triple-Sensor Solution

20 MP Zoom Camera

12 MP Wide Camera

1200 m LRF

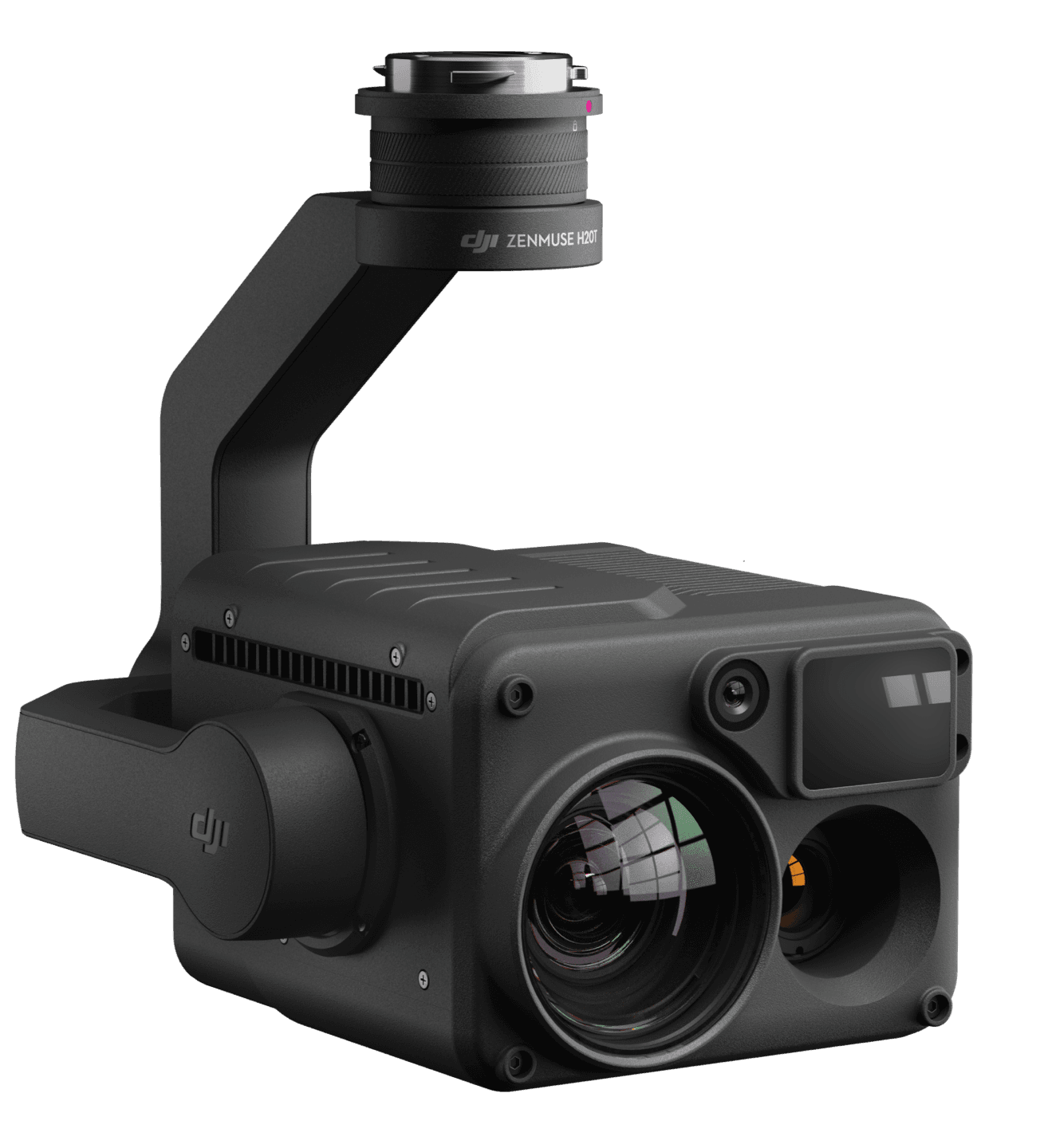

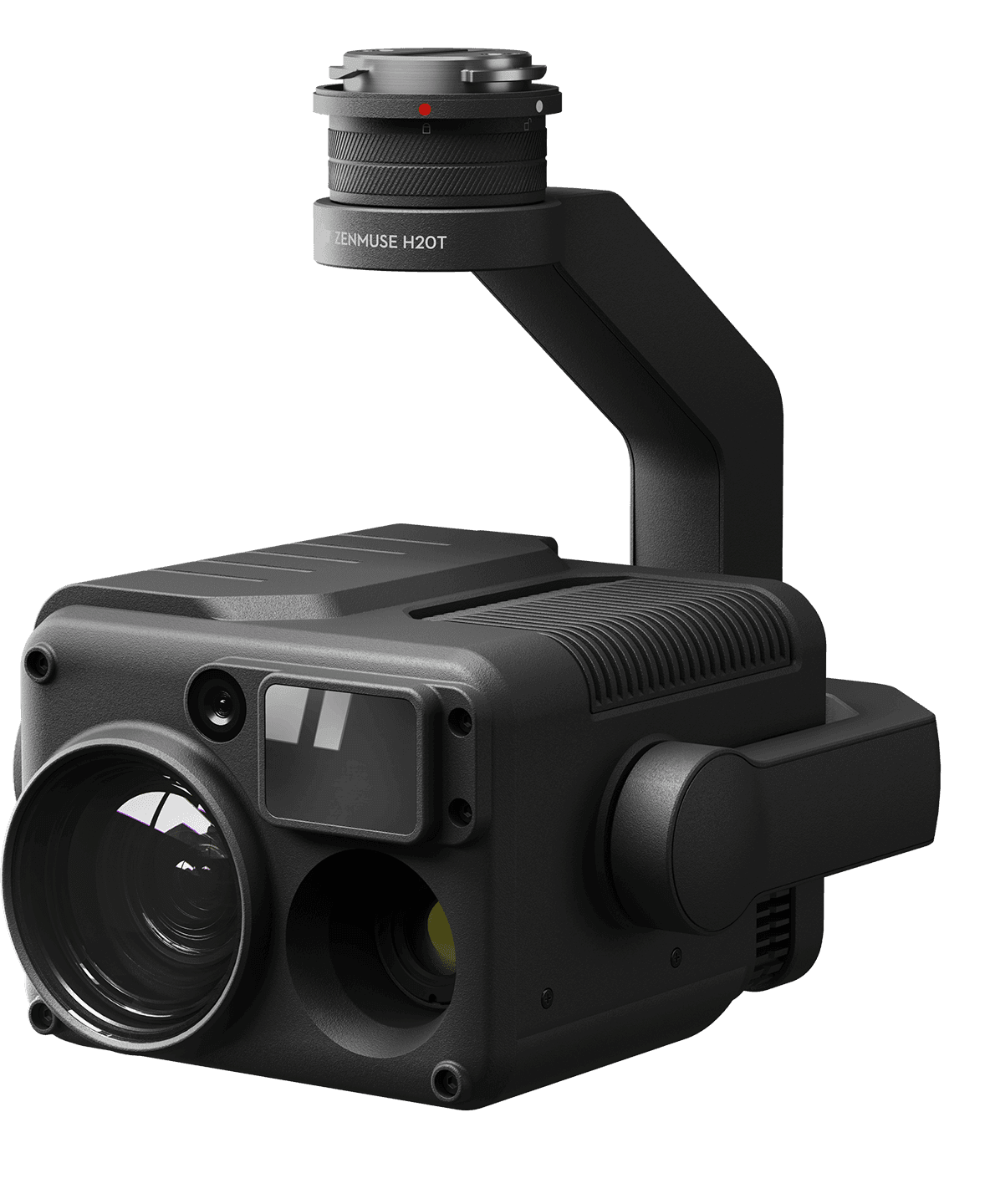

H20T – Quad-Sensor Solution

20 MP Zoom Camera

12 MP Wide Camera

1200 m LRF

640×512 px Radiometric Thermal Camera

Closing the Distance

Powerful Zoom Camera

23x

Hybrid Optical Zoom

200x

Max Zoom

20 MP 1/1.7” CMOS

Sensor

4K/30fps

Video Resolution

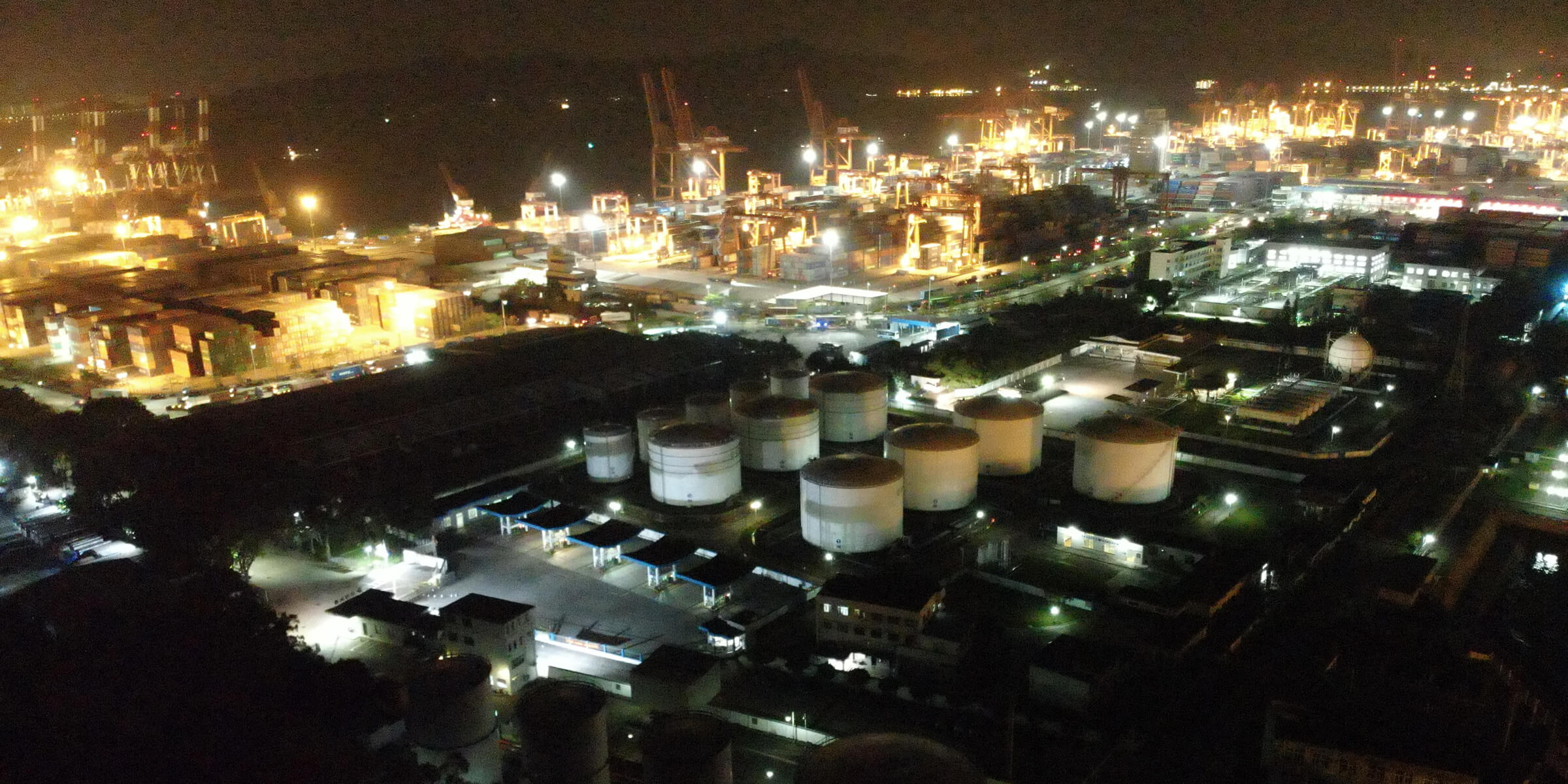

Everything in View

Wide Camera

24mm

Equivalent Focal Length

82.9°

DFOV

12 MP 1/2.3” CMOS

Sensor

Precise Distance Data

Laser Rangefinder

3 m – 1200 m

Range

± (0.2 m + D×0.15%)

Accuracy

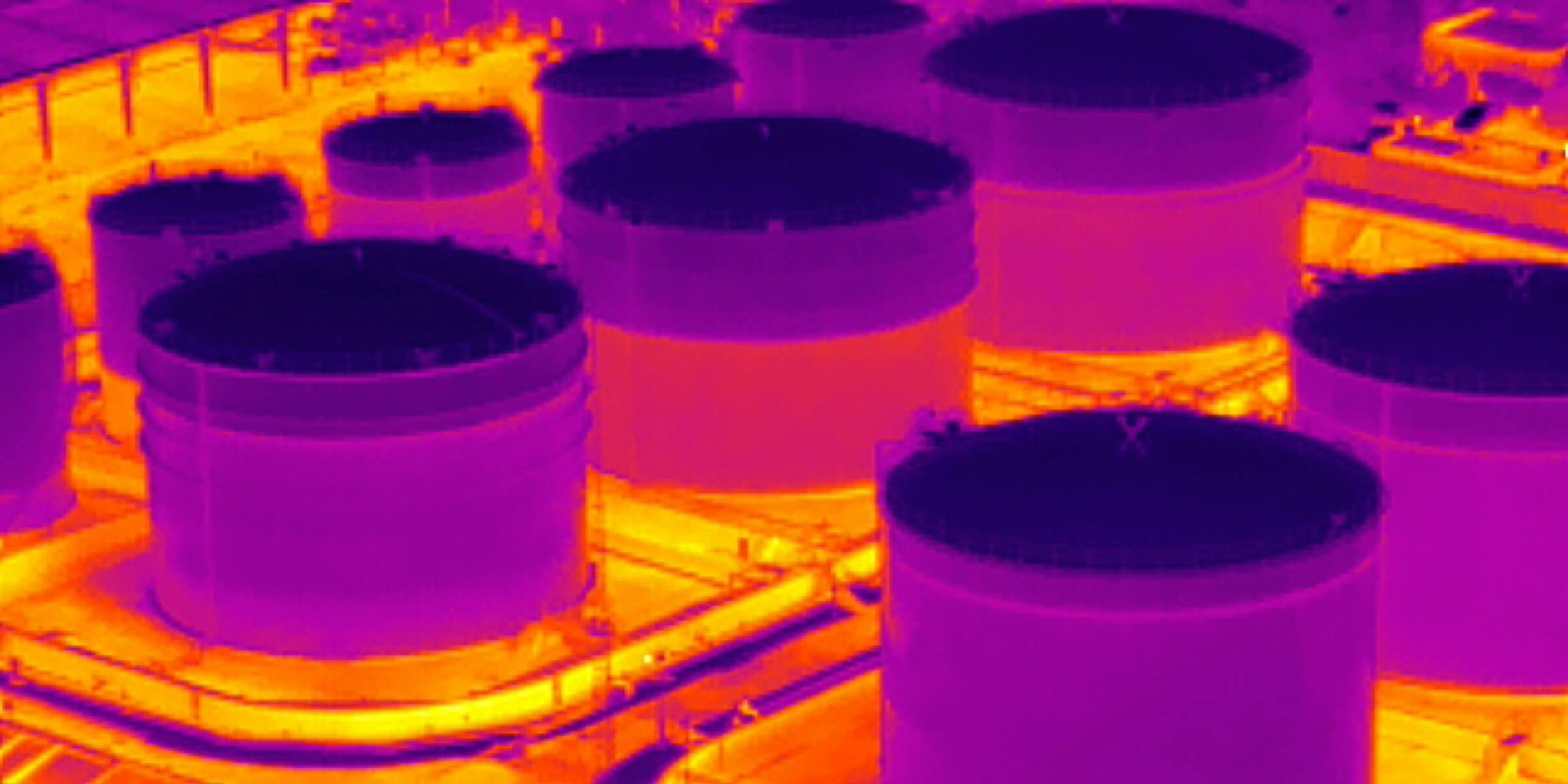

See the Unseen

Radiometric Thermal Camera

40.6°

DFOV

640×512

Resolution

30fps

Frame Rate

≤ 50mk@f1.0 (NEDT)

Thermal Sensitivity

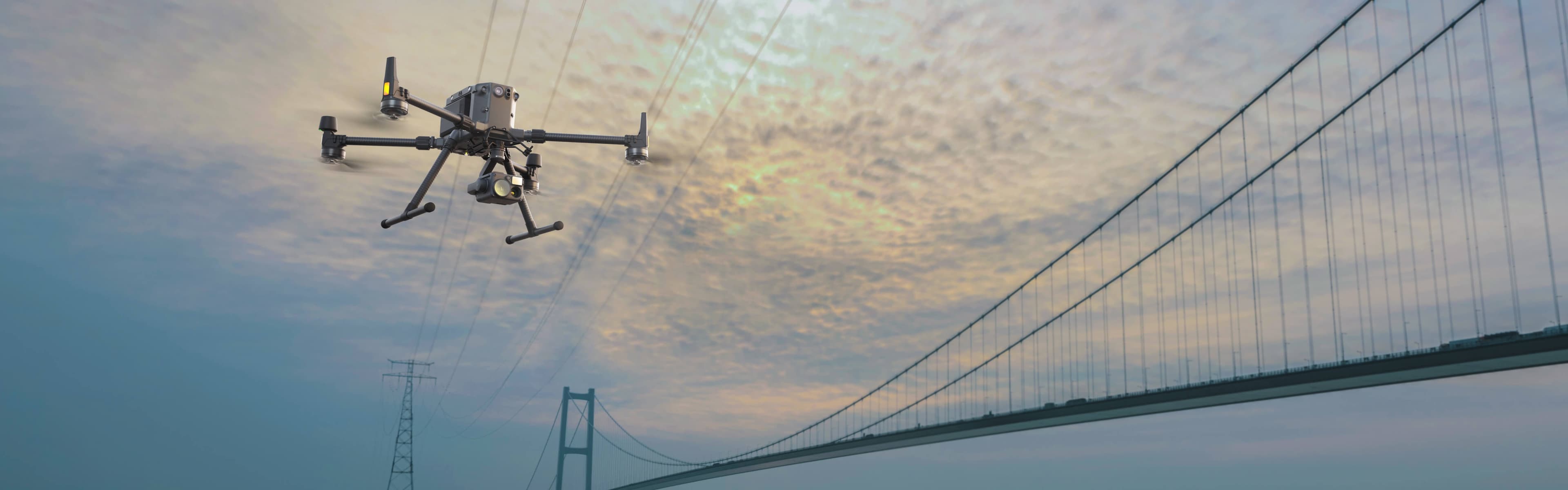

The All-In-One

Seamless User Interface

A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.

Intelligent Ways to Collect Data

Enhanced Intelligence and Efficiency

AI Spot-Check

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

High-Res Grid Photo

Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

PinPoint

A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.

Smart Track

Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.

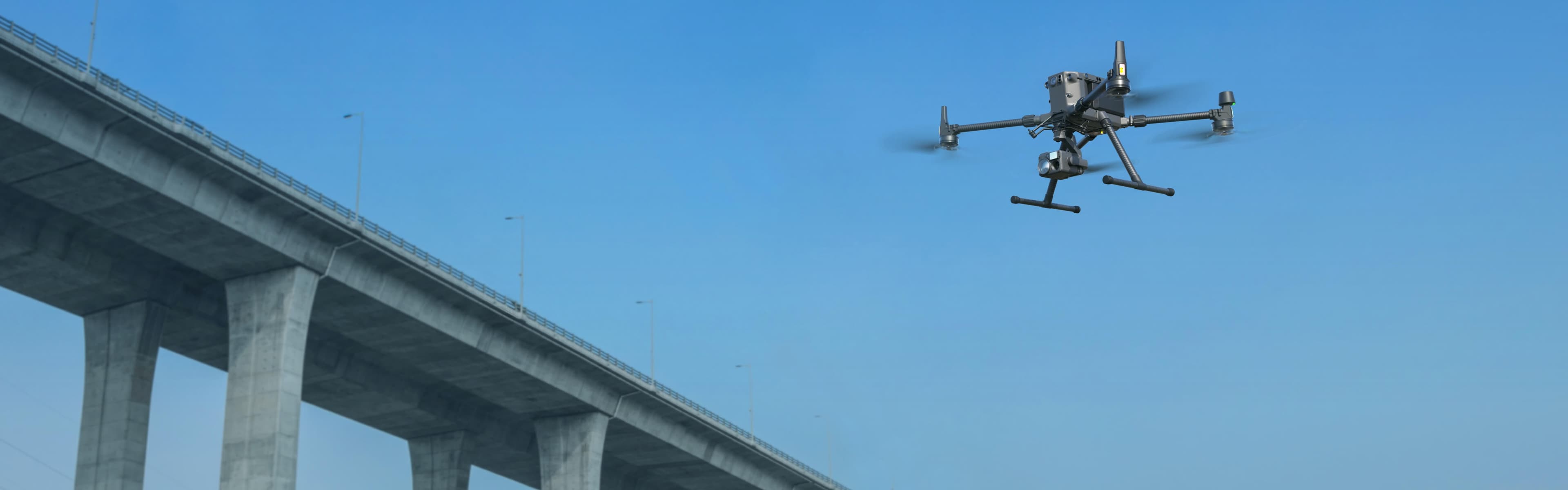

Visualize Temperatures Immediately

Accurate Temperature Measurement

Monitor the temperature of a site or an asset to eliminate any risks by acquiring a precise temperature reading from the air.

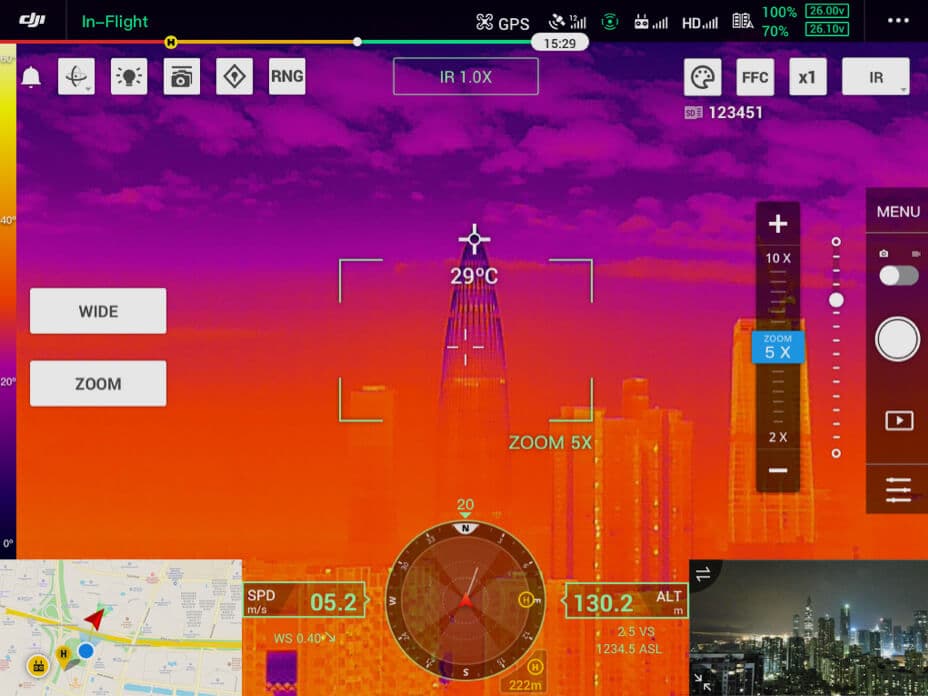

Spot Meter

Tap a point to get a real-time reading of the surface temperature.

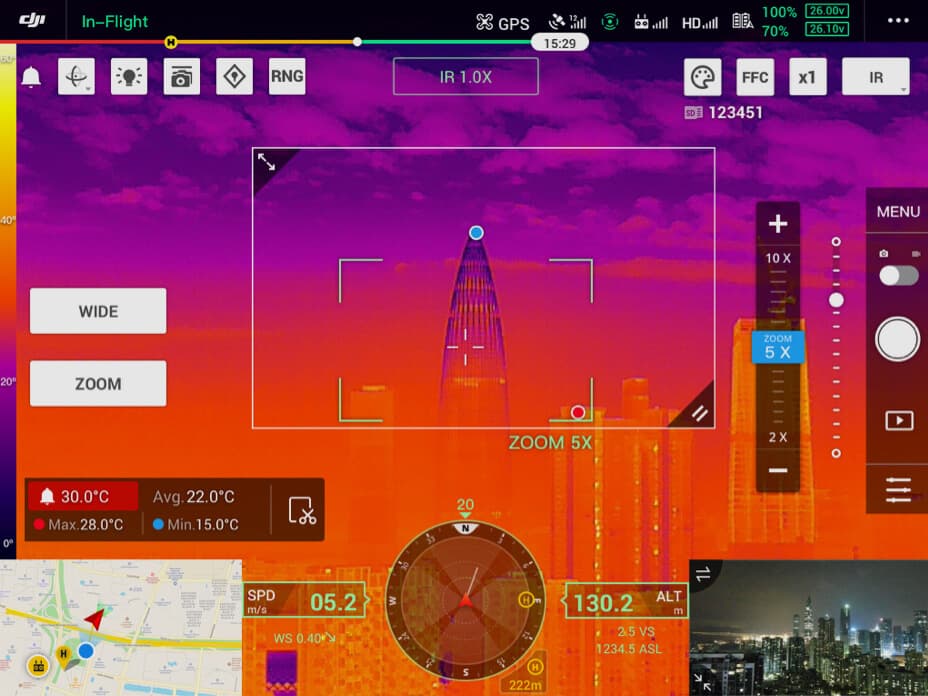

Area Measurement

Select an area to view the lowest, highest, and average temperatures.

Thermal Features

Color Palettes

Adjust the colors applied to the thermal data based on the mission requirements.

Isotherms

Visualize a specific band of temperatures to highlight your targets.

Temp. Alarm

Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.

Gain Modes

Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.

R-JPEG Images

Images captured by the Zenmuse H20N are in R-JPEG format with embedded temperature information. By importing these images into the DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
