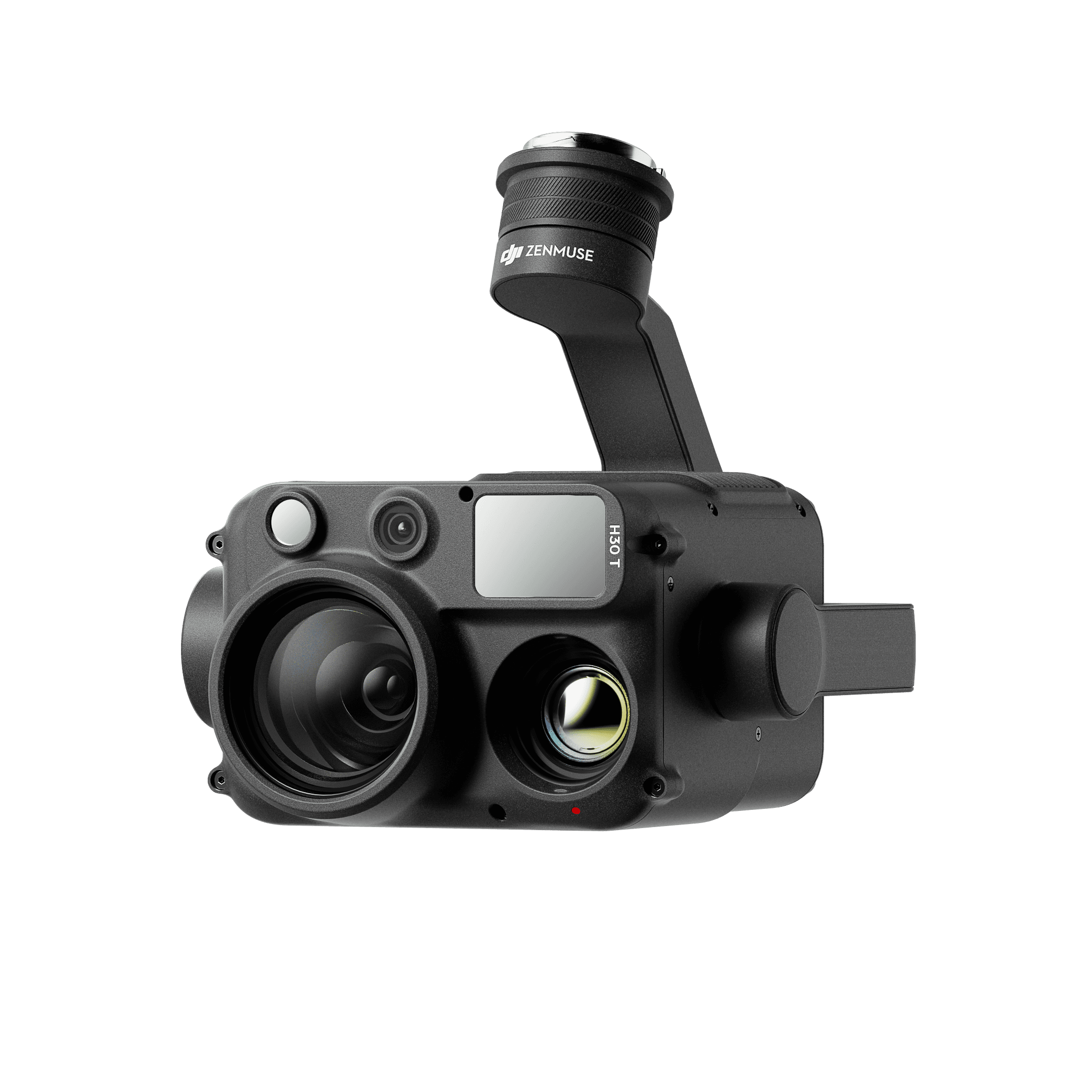

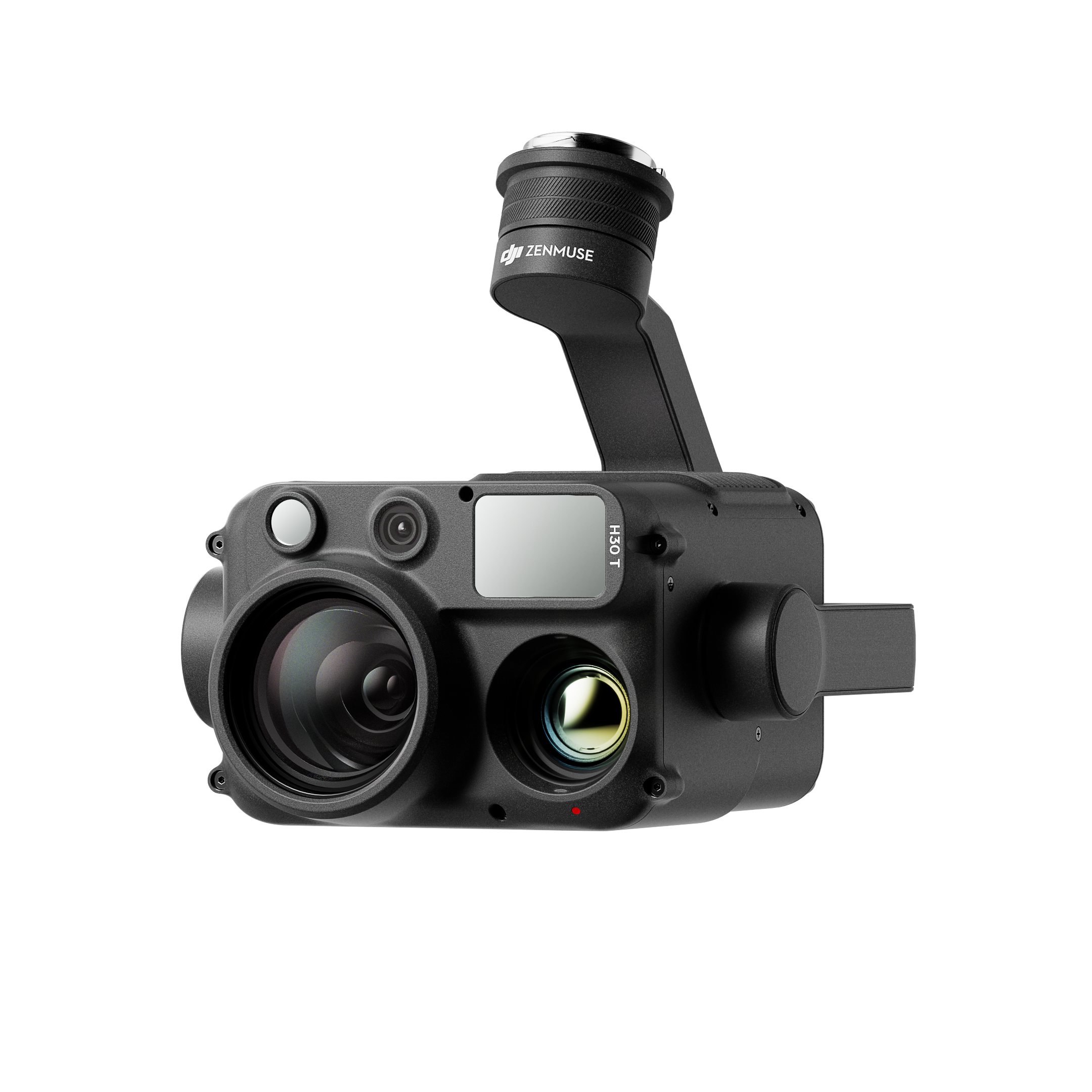

Zenmuse H30 Series
Flagship All-Weather Multi-Sensor Payload

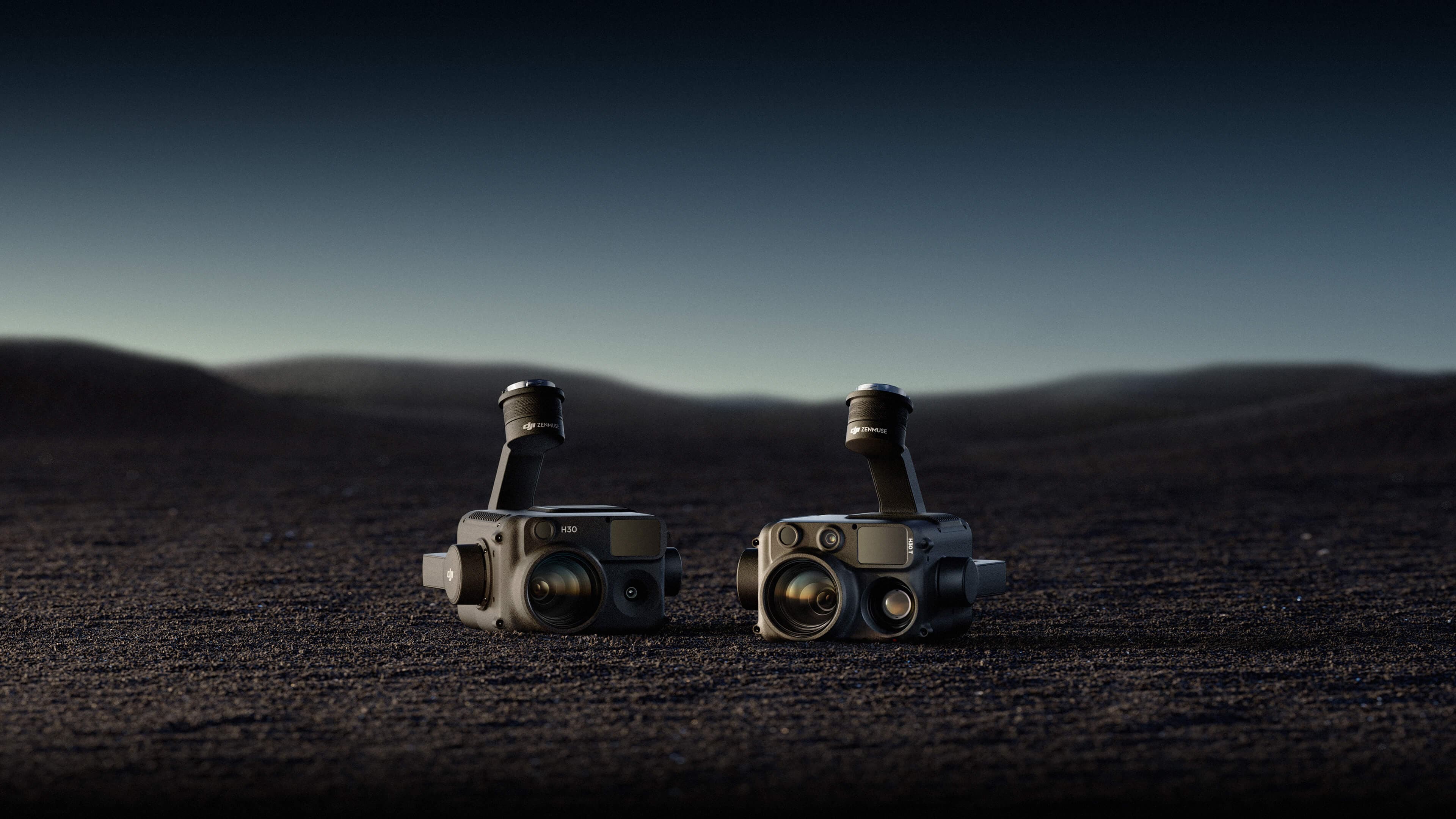

Zenmuse H30 Series
Unparalleled Vision, Day or Night
The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules — a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light.
Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision.
Versatile Performance, Day and Night

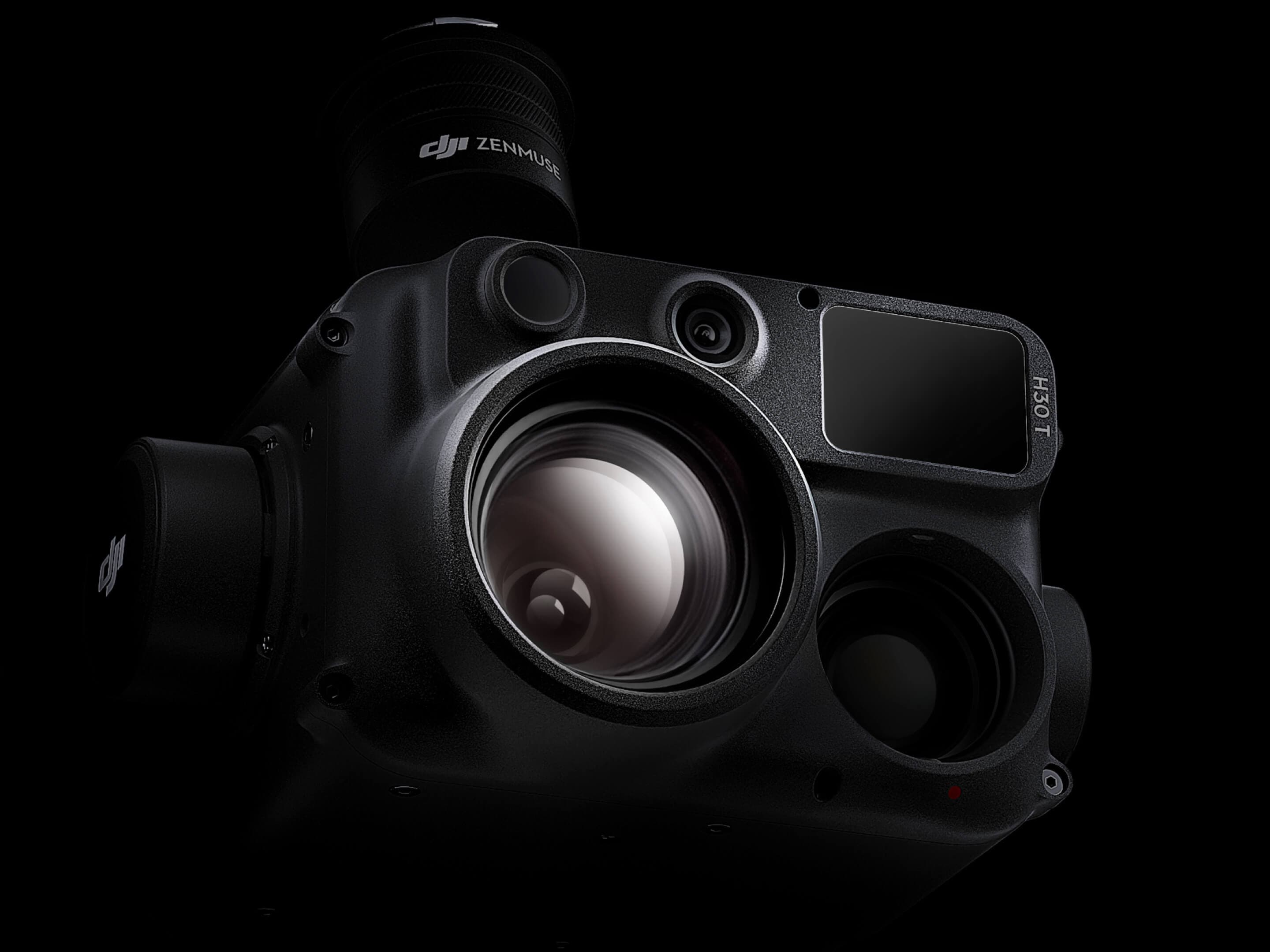

Zoom Camera
Zoom:
Up to 34× Optical, 400× Digital
Sensor:
40MP, 1/1.8-inch CMOS
Video Resolution:
Max 3840×2160 @ 30fps

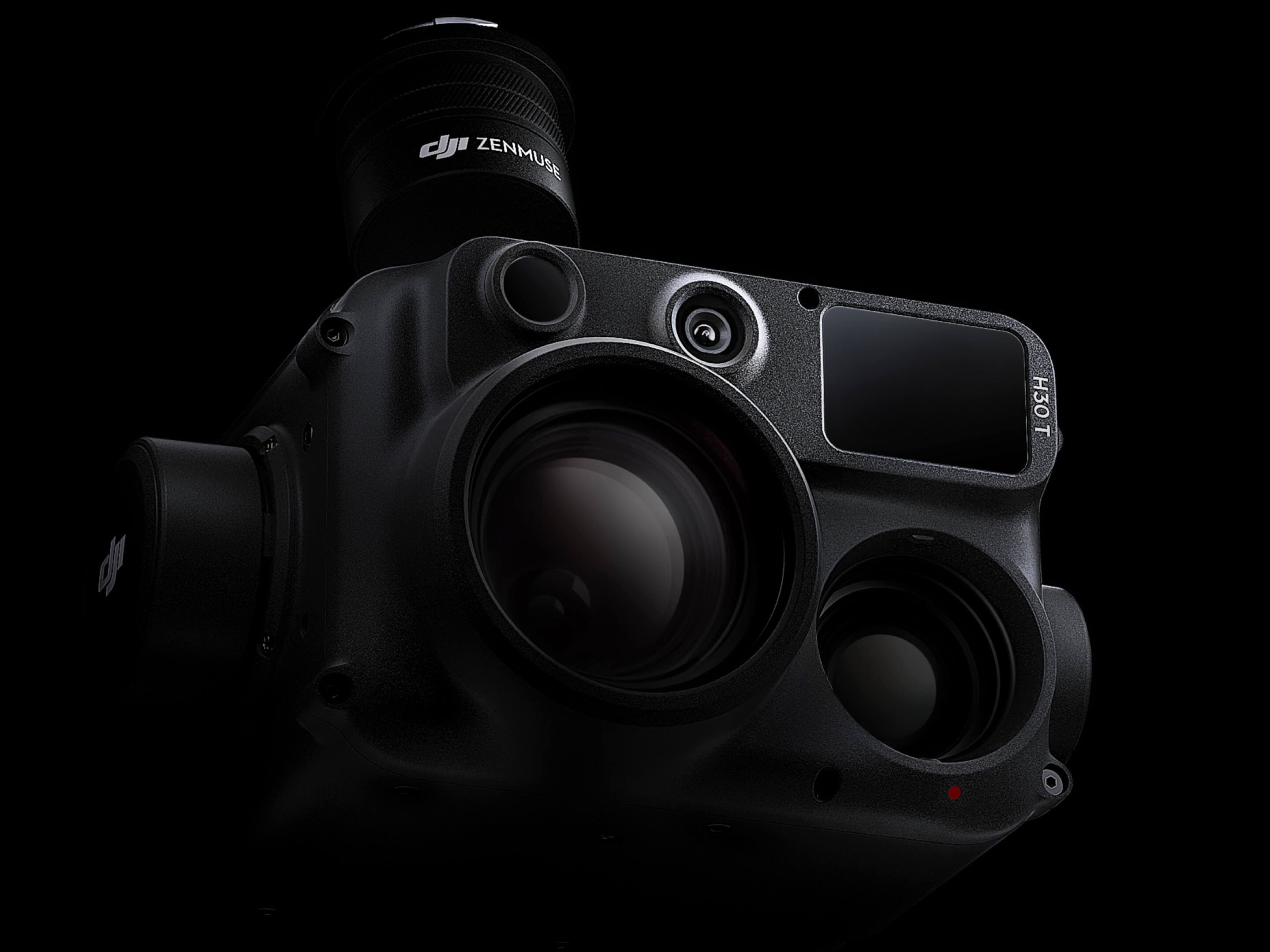

Wide-Angle Camera
Lens:
Equivalent Focal Length 24 mm, DFOV 82.1°
Sensor:
48 MP, 1/1.3-inch CMOS
Video Resolution:
Max 3840×2160 @ 30fps

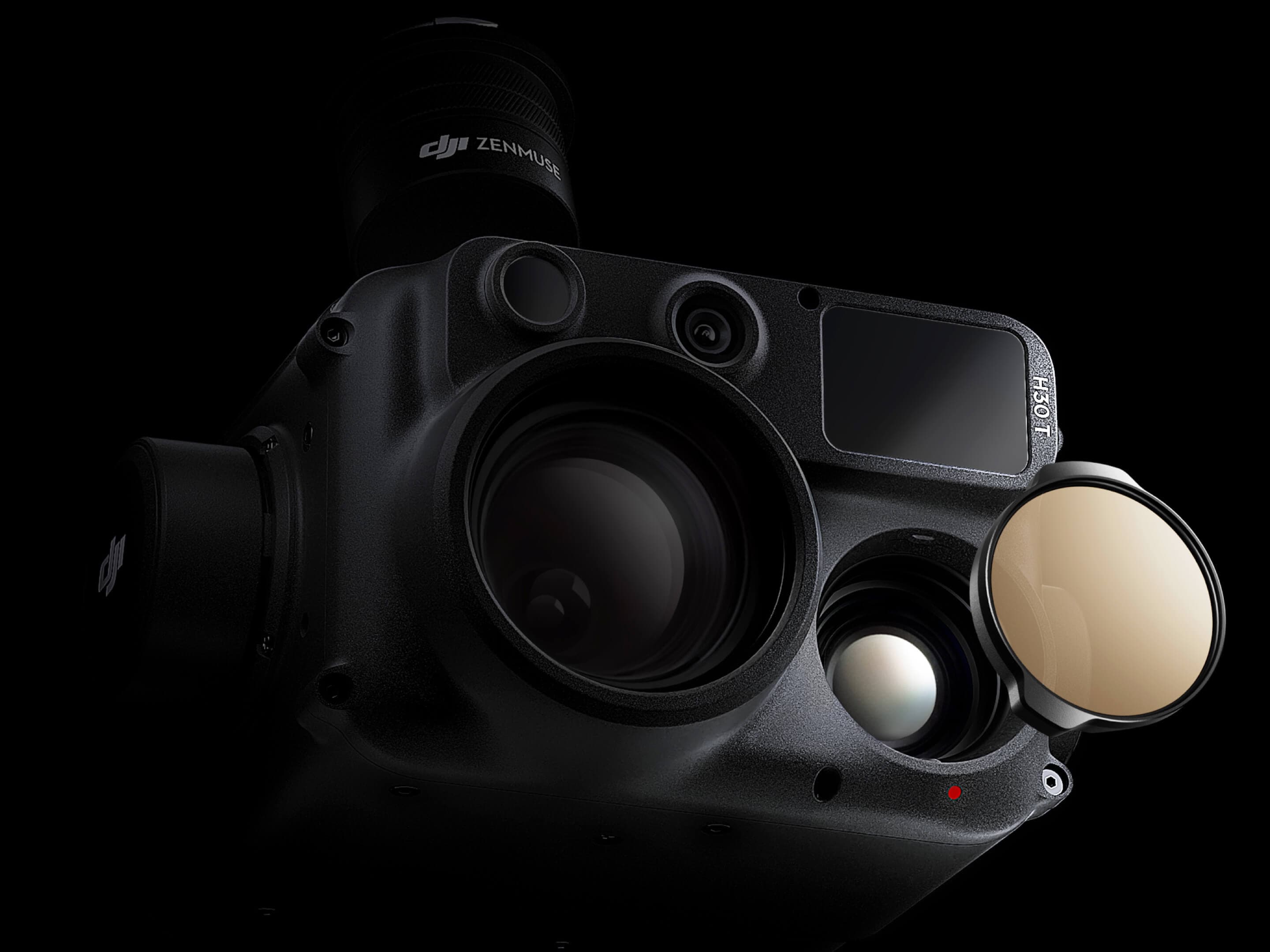

Infrared Thermal Camera (H30T only)
Equivalent Focal Length:
52 mm
DFOV:
45.2°
Sensor:
Uncooled VOx Microbolometer
Photo Resolution:
1280 × 1024
Video Resolution:
1280 × 1024 @ 30fps
Temperature Range:
-20° to 1600° C ( -4° to 2912° F )

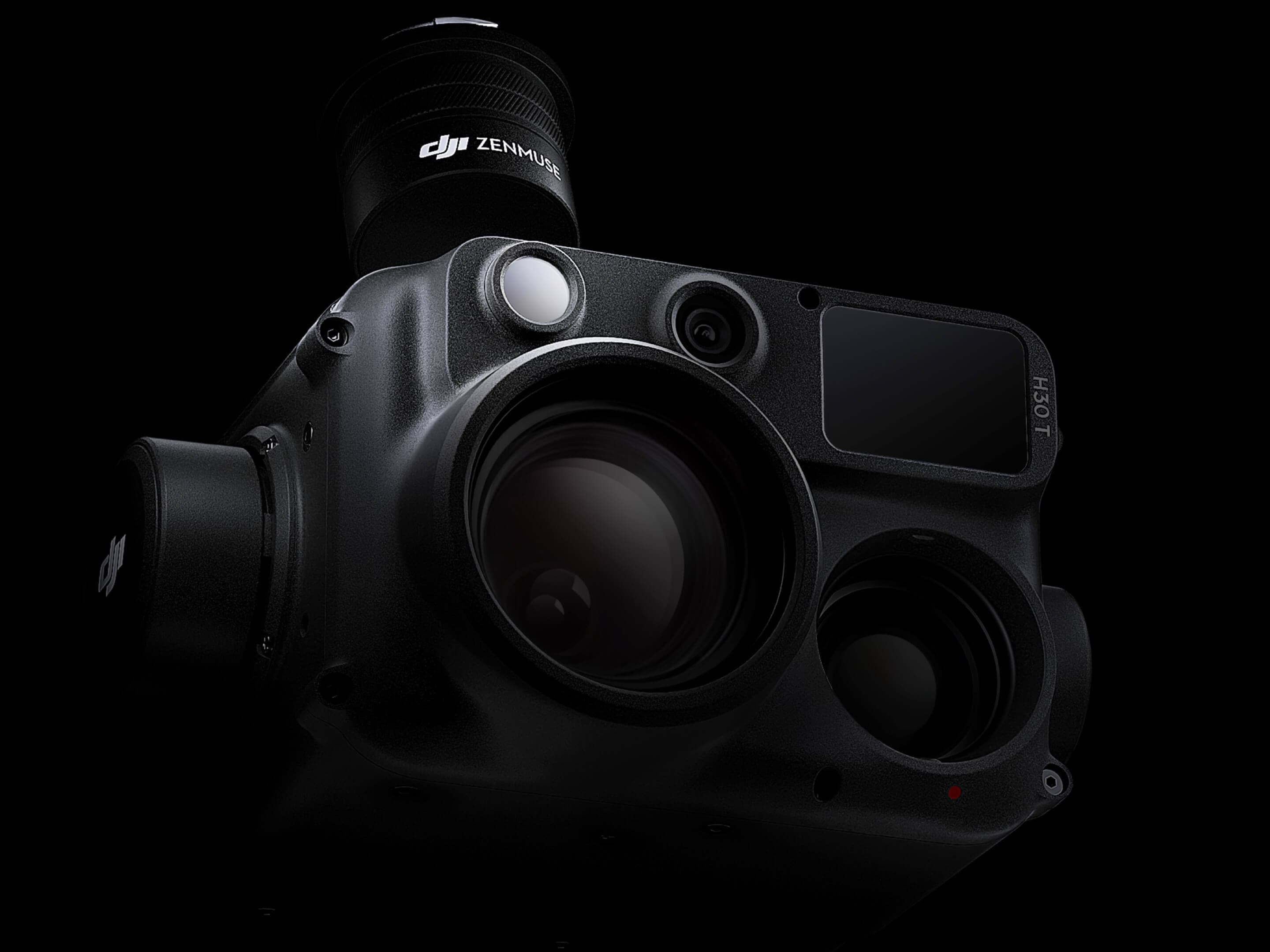

NIR Auxiliary Light
Wavelength:
850 nm
FOV:
4.6±0.6° (Round)
Safety Rating:
Class 1
Illumination Range:
Approx. 8m diameter circle at 100m distance

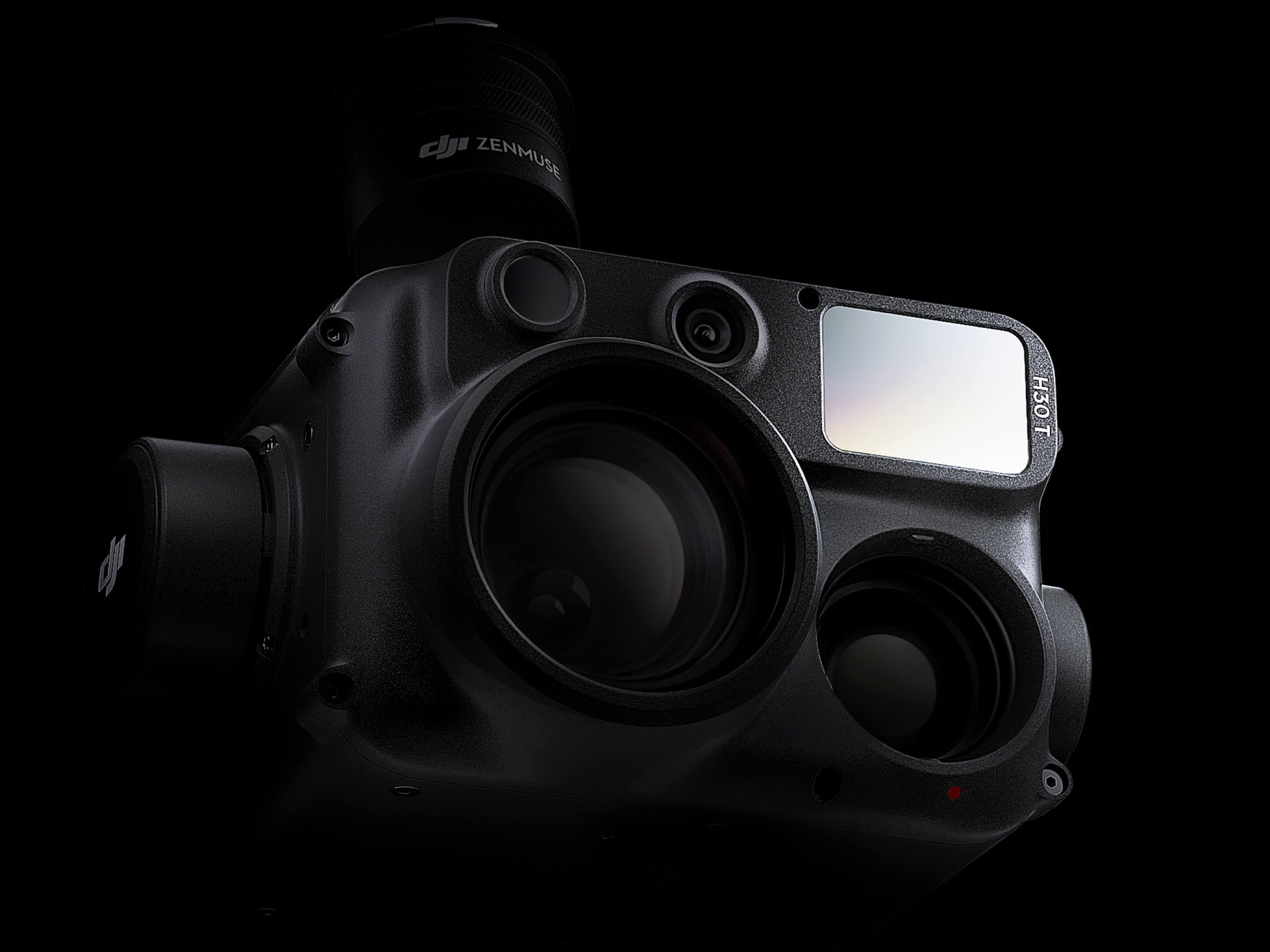

Laser Range Finder
Measurement Range:
3 – 3000 m
Measurement Accuracy:
≤ 500 m → ±(0.2 m + distance × 0.15%) > 500 m → ±1.0 m
Further and Clearer Vision
Further and Clearer Vision
Up to 34× Optical Zoom and 400× Digital Zoom
The Zenmuse H30 Series features a high-resolution 40MP zoom camera, supporting up to 34× optical zoom and an incredible 400× digital zoom. Compared to the previous generation, it not only observes subjects at greater distances but also captures more details.
More Stable Imagery from the Zoom Camera
With DJI's latest image stabilization algorithm, the Zenmuse H30 Series can effectively diminish shake in telephoto footage, delivering stable and clear imagery for detailed power line inspections.
Max 3000m Laser Range Finder
The laser range finder boasts a measurement range up to 2.5 times greater than the previous generation, accurately capturing the position information of subjects within a range from 3 m to 3000 m, including linear distance from the camera, altitude, and GPS coordinates.
Enhanced Night Vision
Supports Full-Color Night Vision
Both the zoom and wide-angle cameras of the Zenmuse H30 Series can switch to Night Scene mode in low-light conditions, enhancing live view and recording quality. This ensures operational efficiency and accuracy at night, enabling continuous operation from day to night.
Supports Black and White Night Vision and NIR Illumination
In Night Scene mode, the Zenmuse H30 Series zoom camera supports IR Light for infrared enhancement and NIR illumination. It switches the live feed to a grayscale image by removing the IR filter, thereby strengthening the contrast between light and dark areas, making it easier to locate subjects. When the NIR auxiliary light is enabled, the zoom camera can benefit from additional NIR illumination, which is especially helpful for night safety observation and search-and-rescue operations.
More Powerful Infrared Performance
1280×1024 Infrared Resolution
The infrared thermal camera delivers 4× higher resolution than the previous generation, providing both wide-scene coverage and the ability to zoom into specific details. At higher zoom levels, the Ultra-High Resolution Infrared Image function ensures that thermal visuals remain sharp and clear.
- 1280 × 1024 Resolution (4× improvement)
- Up to 32× Digital Zoom
- UHR Infrared Imaging
High-Res Mode for Precise Observation
Zenmuse H30T features three infrared gain modes designed for different scenarios. High Gain ensures precise temperature readings, while Low Gain expands the measurable range. The new High-Res Mode is ideal for detecting small differences in temperature, making it highly effective for security, emergency, and search-and-rescue operations.
- High-Res Mode
- Low Gain
- High Gain
Visual and IR Cameras Simultaneous Zoom
The Zenmuse H30T integrates Link Zoom, enabling the zoom and thermal cameras to scale together while keeping the same viewpoint. This side-by-side comparison makes it easier to detect subjects quickly, improving efficiency and reducing operator effort.
- Link Zoom
- Side-by-side comparison
Temperature Measurement Range from -20° to 1600° C (-4° to 2912° F)
With an infrared density filter, the H30T’s thermal camera can measure temperatures up to 1600°C (2912°F) — 3× more than the previous generation. This capability is especially valuable for firefighting and other high-temperature operations, enabling faster hotspot detection and more effective rescue decision-making.
- Infrared Density Filter
- 3× Range Improvement
- Temperature Measurement up to 1600°C
Smarter Multi-Scenario Operations
Smarter Multi-Scenario Operations
In Smart Capture mode, the Zenmuse H30 Series zoom and wide-angle cameras automatically assess the brightness of ambient light and the dynamic range, and apply intelligent image algorithms. This ensures the output of photos with natural transitions between light and dark and rich details, even in environments with high dynamics, strong light, or low light.
IP54 Ingress Protection
With an IP54 dust and water resistance rating, the Zenmuse H30 Series can operate safely and reliably even in harsh working conditions.
-20° to 50° C (-4° to 122° F) Operating Temperature
The Zenmuse H30 Series is built to work in temperatures ranging from -20° to 50° C (-4° to 122° F), meeting all-weather operational needs.
More Reliable Information Sync and Retention
More Reliable Information Sync and Retention
All cameras of the Zenmuse H30 Series, including the zoom, wide-angle, and infrared thermal cameras, support pre-recording. They can retain footage from 10, 15, or 30 seconds before the formal recording starts, ensuring a more complete record and capturing key information that may otherwise be quickly lost.
Zenmuse H30 Series
Unparalleled Vision, Day or Night
